PROMAX TV, satellite and broadcast analyzers
Satellite and TV Test & Measurement Instruments
In field strength meters and spectrum analyzers, PROMAX is the world reference. Made in Spain; the professional market’s benchmark for reliability, design and long service life. Widely imitated — yet operators, broadcasters and expert installers stay with PROMAX. We have been the general distributor for Turkey since 1989 and ship worldwide.
- DVB-T2 / C2 / S2x
- ATSC 3.0
- ISDB-T/Tb
- IPTV and ST 2110
- 4K HEVC
- DOCSIS
- Fiber optics
- Wi-Fi analysis
- Rack-mounted
From the field meter in a technician’s bag to the headend monitoring system, the whole family shares one interface and one measurement logic — learn one instrument and your team knows them all. Commissioning training, warranty and post-warranty service are run from Istanbul.
Which analyzer is right for you?
The PROMAX range falls into four layers: broadcast class (ATLAS, TV EXPLORER NG), professional field (RANGER Neo 3 / 2 / +), entry and compact (Neo Lite, RANGER mini, HD RANGER) and antenna alignment meters (SATHUNTER+, TVHUNTER+). Every model also has a 19” rack counterpart. The table below goes from the job to the instrument.
| What you need to do | Recommended model |
|---|---|
| Align a satellite dish | SATHUNTER+ — identifies the satellite automatically and shows its orbital position |
| Align a terrestrial antenna (DVB-T/T2) | TVHUNTER+ |
| Align a terrestrial antenna (ISDB-T/Tb) | TVHUNTER+ ISDB-T |
| Install and commission subscriber premises | RANGER Neo Lite or HD RANGER Eco |
| One instrument for everything: TV, satellite, CATV/DOCSIS and fiber | RANGER mini |
| Certify SMATV and in-building distribution | RANGER Neo + — webControl, Spectrogram, 4+ hours of battery |
| Maintain a cable TV network and IPTV | RANGER Neo 2 — IPTV analyzer, TS-ASI, CAM slot |
| Hunt 4G/5G interference, analyse echoes | RANGER Neo 2 or Neo 3 — super spectrum with triple split screen |
| Transmitter site and SFN network measurement | RANGER Neo 3 — Network Delay Margin, T2-MI, GPS drive test |
| DAB/DAB+ digital radio | RANGER Neo 3 |
| Validate ATSC 3.0 / NextGen TV | ATLAS NG |
| All-IP production: SMPTE ST 2110, SRT, NDI | ATLAS NG or ATLAS IP |
| IP transport stream monitoring only | ATLAS IP |
| Continuous monitoring in the headend | Rack-mounted models — ATLAS NG Rack, RANGER Neo Rack family |
| Projects requiring the North American standard (ATSC) | ATSC versions: available across the RANGER Neo range except Neo 3 |
| Test an installation before any signal is present | RP-050, RP-080 or RP-110 test signal generators |
| Coverage measurement (drive test) | AM-060 omnidirectional antenna plus a GPS-equipped RANGER Neo |
Tell us the network type, channel plan and how many crews it has to cover, and we will propose a specific configuration.
Broadcast-class analyzers
For headends, transmitter operators and production environments. From traditional RF broadcasting to All-IP production on a single platform; 4K HEVC decoding, multi-touch interface and remote management are common to all three.
TV EXPLORER NG
Universal TV and spectrum analyzer
The next-generation TV EXPLORER: native 4K support, DVB-T2, DVB-S2x, ISDB-T/Tb, with optional ATSC 3.0 and fiber optics. A multi-touch interface with smartphone-like immediacy.
Expandable with FM radio, DAB/DAB+ and a selective optical fiber meter. Diagnoses HbbTV service URLs. Generates PDF reports on the instrument itself — you finish installation certification in the field.

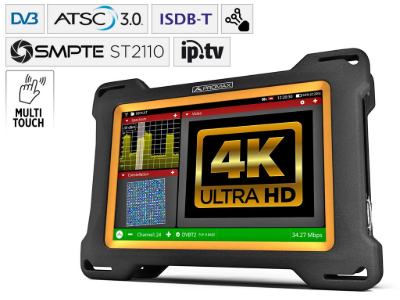

ATLAS NG
ATSC 3.0 and DVB universal broadcast analyzer
A 6 GHz spectrum analyzer with 4K video decoding in H.265. It unifies traditional broadcasting and IP production on one platform: SMPTE ST 2110, SRT and NDI protocol analysis.
SD-SDI, HD-SDI and 3G-SDI (up to 3 Gbps), a built-in SDI test pattern generator, eye-diagram signal quality and up to 16 simultaneous audio channels. DVB-S2x, IPTV, fiber optics and Wi-Fi all included. Remote management and monitoring over the internet.
ATLAS IP
Portable analyzer for broadcast environments
The field instrument for the All-IP transition. IP Multicast/Unicast, 3G-SDI and ASI-TS interfaces validate both compressed and uncompressed signals.
10-bit 4K UHD H.265 decoding and Dolby AC-4 audio. In IPTV mode, more than 20 measurements — jitter, packet rate, histogram, inter-packet arrival time. SRT low-latency transport, optional ST 2110 with PTP Master Clock synchronisation. Real-time error detection in T2MI, BTS and MPEG-TS streams.
The RANGER Neo family — professional field analyzers
PROMAX’s best-selling range. All four decode HEVC H.265, have touchscreens and run for over four hours on battery. They differ in spectrum speed, depth of IPTV and network analysis, and extra interfaces. ATSC versions are available for the North American market.
RANGER Neo 3
High-end class
The most capable of the family. Network Delay Margin for SFN networks, T2-MI interface analysis, GPS drive test and DAB/DAB+ digital radio — plus every Neo 2 function.
7” touchscreen, ultra-fast spectrum with triple split display, constellation diagram, dynamic echo analysis, Wide Band LNB compatibility, real Wi-Fi spectrum analysis and remote control via web server.
RANGER Neo 2
Professional class
The reference field meter for hybrid networks: TV (terrestrial and satellite), CATV, IPTV and Wi-Fi. Supports DVB-T2/C2/S2, ISDB-T/Tb and DSS.
A Super Spectrum Analyzer with triple split screen catches 4G/5G interference and dynamic echoes in real time. TS-ASI input/output, a CAM (Common Interface) slot for encrypted channels and a transport stream recorder/player. Wi-Fi analysis at 2.4 and 5 GHz; fiber optic and GPS options.

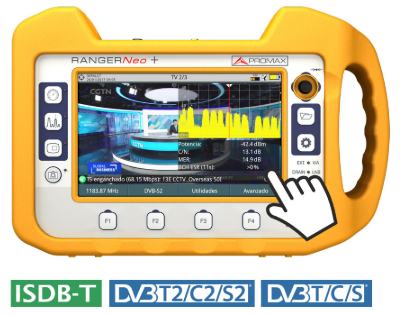

RANGER Neo +
Advanced class
The most versatile field meter in the professional market. HEVC H.265 for UHD viewing, ultra-fast spectrum with triple split display, dynamic echo and constellation analysis.
webControl remote operation, Merogram and Spectrogram, fiber optic and GPS options — plus every Neo Lite function.

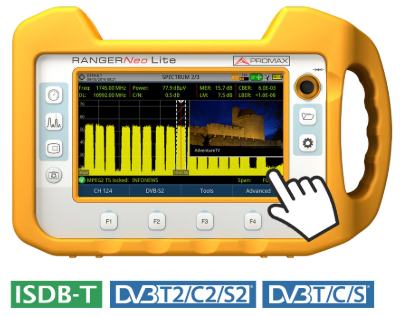

RANGER Neo Lite
Entry class
The entry model, with the full standard set: DVB-T2/C2/S2, DSS and ISDB-T/Tb plus an H.265 (HEVC) decoder.
2.4 GHz Wi-Fi analyzer, HDMI™ output and a touch interface. For installing, maintaining and certifying TV, satellite, CATV and Wi-Fi networks.

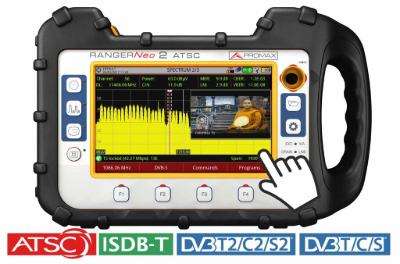

RANGER Neo 2 ATSC
Professional class — ATSC
The ATSC and DVB-C/C2/S/S2 version of the Neo 2. IPTV analyzer, high-resolution filters, TS-ASI input/output, CAM slot and transport stream recorder — plus every Neo + ATSC function.
RANGER Neo + ATSC
Advanced class — ATSC
The ATSC and DVB-C/C2/S/S2 version of the Neo +. webControl, Spectrogram, fiber optic and GPS options, over four hours of battery — plus every Neo Lite ATSC function.

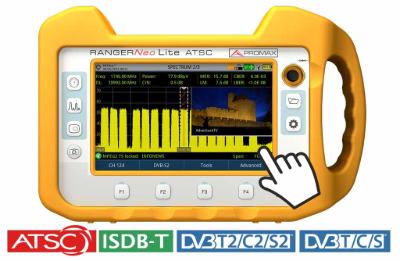

RANGER Neo Lite ATSC
Entry class — ATSC
The ATSC, DVB-C2 and DVB-S2 version of the Neo Lite. H.265 (HEVC) decoder, 2.4 GHz Wi-Fi analyzer, HDMI™ output and touchscreen.
RANGER mini
All-in-one compact
Pocket-sized and ruggedised. DVB-T2/S2, ISDB-T, DOCSIS cable networks and FM radio in one instrument.
5–2700 MHz tuning range, 230 kHz / 2 MHz resolution, dBmV / dBµV / dBm units, LNB supply 13 V / 18 V / 22 kHz. MER, preBER, postBER and constellation on a single screen. An optional fiber optic analyzer with optical-to-RF converter covers HFC and FTTH diagnostics. Datalogger functions for automatic network audits.
Compact analyzers and antenna alignment meters
The everyday instruments of an installation crew. For antenna alignment, subscriber connection and commissioning — small, light and fast.

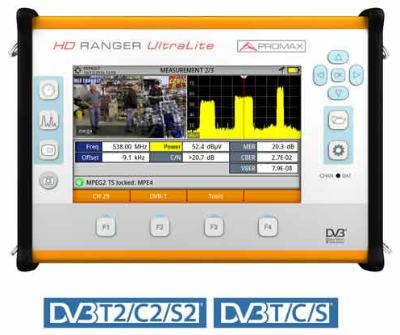

HD RANGER UltraLite
Tablet-sized analyzer
Tablet form factor with no loss of capability. Compatible with DVB-T2, DVB-C2 and DVB-S2; MPEG-2 and MPEG-4 (H.264) video processing. Split-screen display shows critical parameters side by side.
HD RANGER Eco
Cost-effective HD analyzer
The most efficient option on price per capability. Handles DVB-T2/C2/S2 and legacy DVB-T/C/S; MPEG-2, MPEG-4 (H.264) video and H.265 signal detection.
An ultra-fast spectrum analyzer with a 90 ms sweep time and peak hold — you see the fault immediately.

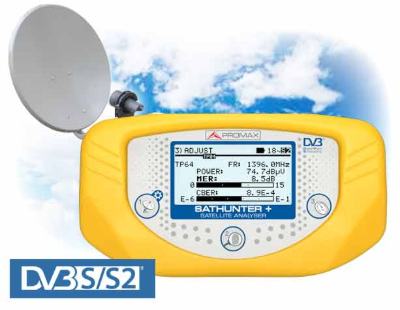

SATHUNTER+
Satellite dish alignment meter
The instrument for Direct-to-Home installations. Fully automatic; compatible with DVB-S, DVB-S2 and DSS.
While you turn the dish it identifies the satellite itself, showing the orbital position and the service list read from the network tables. It takes the guesswork out of the roof.

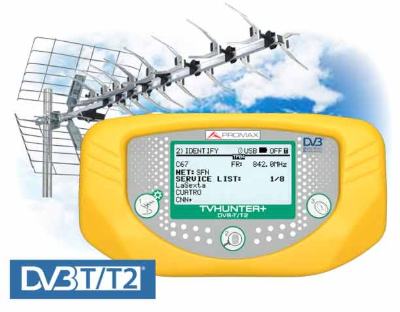

TVHUNTER+
Terrestrial TV alignment meter (DVB-T/T2)
A pocket-sized field meter. Unlike basic finders it is fully compatible with DVB-T and DVB-T2 — it detects and analyses HD terrestrial broadcasts.
The core measurements that prove reception quality: MER, CBER, VBER.
TVHUNTER+ ISDB-T
Terrestrial TV alignment meter (ISDB-T/Tb)
For countries on the ISDB-T/Tb standard. HD signal analysis in an extremely light, rugged pocket-sized body, with the critical quality measurements BER and MER.
RANGER Neo family comparison
| Neo Lite | Neo + | Neo 2 | Neo 3 | |
|---|---|---|---|---|
| Class | Entry | Advanced | Professional | High-end |
| Standards | DVB-T2/C2/S2, DSS, ISDB-T/Tb | Same as Neo Lite | DVB-T2/C2/S2, ISDB-T/Tb, DSS | Same as Neo 2 |
| HEVC H.265 / 4K | Yes | Yes | Yes | Yes |
| Super spectrum, triple split screen | — | Yes | Yes | Yes |
| Dynamic echoes and constellation | — | Yes | Yes | Yes |
| IPTV analyzer | — | — | Yes | Yes |
| TS-ASI input/output | — | — | Yes | Yes |
| CAM (Common Interface) slot | — | — | Yes | Yes |
| Transport stream record/play/analyse | — | — | Yes | Yes |
| webControl remote operation | — | Yes | Yes | Yes |
| Merogram / Spectrogram | — | Yes | Yes | Yes |
| Wi-Fi analysis | 2.4 GHz | 2.4 GHz | 2.4 and 5 GHz | 2.4 and 5 GHz |
| Network Delay Margin (SFN) | — | — | — | Yes |
| T2-MI analysis | — | — | — | Yes |
| GPS drive test | — | Option | Option | Yes |
| DAB/DAB+ digital radio | — | — | — | Yes |
| Fiber optic option | — | Yes | Yes | Yes |
| Battery | — | 4+ hours | 4+ hours | 4+ hours |
| ATSC version | Yes | Yes | Yes | — |
| Rack version | Yes | Yes | Yes | Yes |
Compiled from the manufacturer’s published feature lists; “—” means the feature is not stated for that model. We send the current full datasheet with every quote.
The RANGER Neo 4 is out of production; the ATLAS family has replaced it. If you run a Neo 4 and are planning a replacement: ATLAS NG for broadcast and IP-heavy work, RANGER Neo 3 for field-measurement-heavy work. We continue to service and calibrate the Neo 4 units already in the field.
Rack-mounted analyzers — headend monitoring
The same measurement engine in a 19” rack body. The instrument in the field and the instrument in the headend speak the same language: same interface, same measurement definitions, same report format. Built for continuous monitoring, remote control and alarming.
ATLAS NG Rack
Rack-mounted broadcast analyzer
The universal solution for today’s broadcast environment, unifying traditional and IP standards: 4K, ATSC 3.0, ST 2110 and advanced analysis of audiovisual production networks. For monitoring every kind of broadcast signal, All-IP environments included.

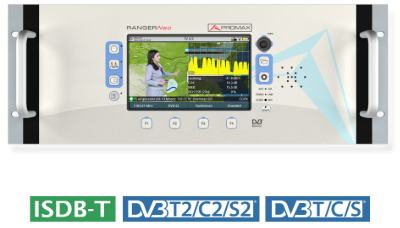

RANGER Neo Rack 3
High-end rack
The rack counterpart of the Neo 3: Network Delay Margin, T2-MI analysis, GPS and DAB/DAB+ — plus every Rack 2 function.

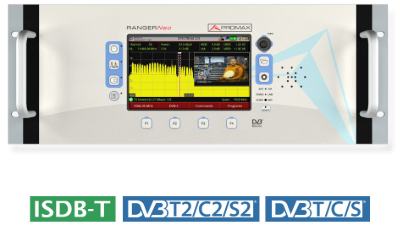

RANGER Neo Rack 2
Professional class rack
IPTV analyzer, high-resolution filters, TS-ASI input/output, CAM slot and transport stream recorder/player — plus every Rack + function.

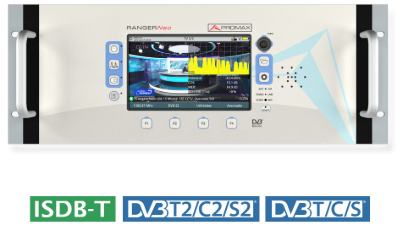

RANGER Neo Rack +
Advanced class rack
webControl remote operation, Merogram and Spectrogram, fiber optic and GPS options, over four hours of battery — plus every Rack Lite function.
RANGER Neo Rack Lite
Entry class rack
A multifunction spectrum analyzer in a 19” rack body. ISDB-T/Tb, DVB-T2, DVB-C2, DVB-S2 and an H.265 (HEVC) decoder; 2.4 GHz Wi-Fi analyzer, HDMI™ output, touchscreen.
RANGER Neo Rack 2 ATSC
Professional class rack — ATSC
The ATSC and DVB-C/C2/S/S2 version of the Rack 2. IPTV analyzer, TS-ASI input/output, CAM slot and transport stream recorder — plus every Rack + ATSC function.

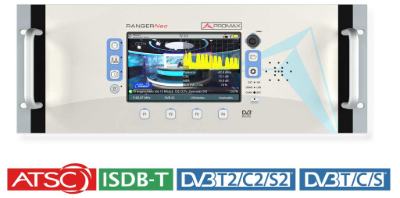

RANGER Neo Rack + ATSC
Advanced class rack — ATSC
The ATSC and DVB-C/C2/S/S2 version of the Rack +. webControl, Spectrogram, fiber optic and GPS options.
RANGER Neo Rack Lite ATSC
Entry class rack — ATSC
The ATSC, DVB-C2 and DVB-S2 version of the Rack Lite. H.265 (HEVC) decoder, 2.4 GHz Wi-Fi analyzer, HDMI™ output and touchscreen.
Multicarrier test signal generators
Complementary to PROMAX field meters. They let you check an installation on the IF, UHF and CATV bands before any real signal exists — you test as soon as the cabling is finished, without waiting for an antenna or a broadcast.
RP-050
IF and UHF signal generator
Handy, versatile and easy to use. Check satellite receivers and a building’s coaxial cabling without a live broadcast.
RP-080
Test signal generator
Generates up to four independent pilot carriers with individually selectable levels — for measuring tilt and level balance across a distribution network at several points at once.

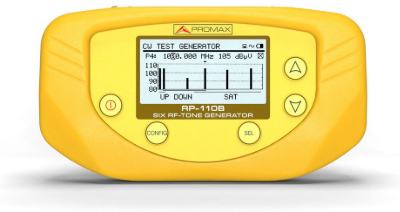

RP-110
Coaxial cable test generator
Certifies coaxial cable across all the bands it is used in — CATV and SMATV. The evidence behind the measurement report you hand over with the installation.
Accessories and complements
Auxiliary instruments that extend what a field meter can do: coverage antennas, frequency converters, a noise generator and a transport case.

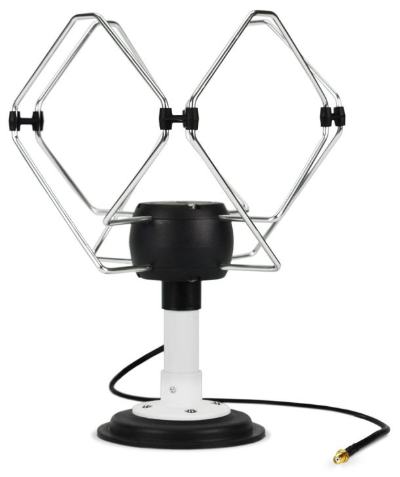

AM-060
Omnidirectional coverage antenna
Ideal for drive testing. Its omnidirectional design means you measure without aiming; its magnetic base sticks to a vehicle body. It needs no external supply — it does not drain the analyzer’s battery, so coverage runs last longer.

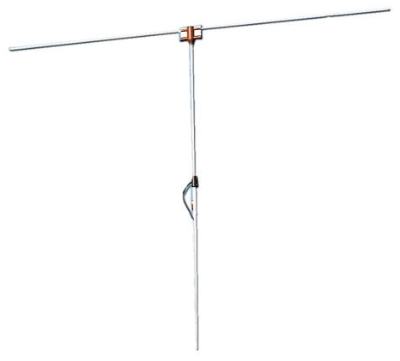

AM-030
Master test antenna
Connected to any field strength meter, it measures the electric field strength at your location. The basic tool for site surveys and choosing where an antenna goes.
CV-100
Optical-to-RF converter
Makes TV and satellite analyzers compatible with optical LNBs. On installations distributing satellite over fiber, you measure without replacing the analyzer you already own.

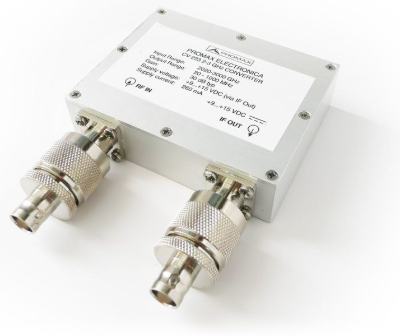

CV-223
2–3 GHz down converter
A radio frequency down converter for the 2020–3000 MHz range, letting you measure bands above the analyzer’s upper frequency limit.

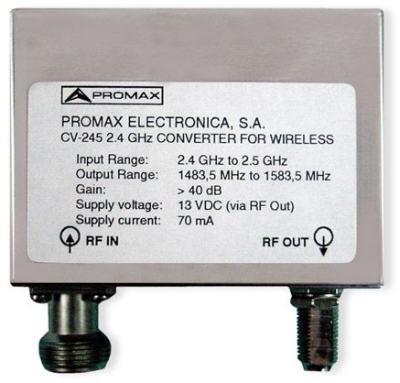

CV-245
2.4 GHz band converter
A radio frequency down converter for the 2.4–2.5 GHz range, used for Wi-Fi and ISM band measurements.
NG-283
Noise generator
A handheld broadband white Gaussian noise generator covering 1–2200 MHz — for sweeping a network’s frequency response in one pass and plotting its attenuation curve.
CV-150
Security camera video adapter
Converts TVI, AHD and CVI to PAL/NTSC — you view CCTV camera video on the screen of your TV analyzer. For crews covering both broadcast and security installations, it removes the need to carry a separate monitor.

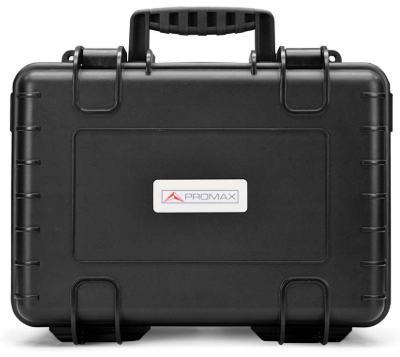

DC-229
Transport and storage case
A sturdy case manufactured in ABS plastic with customisable inner space. Carries instrument, probes and accessories in one impact-protected case.
Software
PROMAX software that turns measurement results into reports, maps and archives.

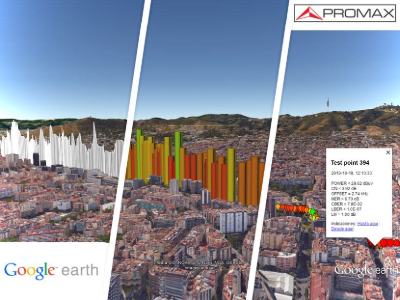

KML Generator
Coverage map builder
A free online tool. It converts the signal coverage analysis files produced by the HD RANGER into KML — open them in Google Earth and your coverage map is there. Valuable for regulator and operator reporting.

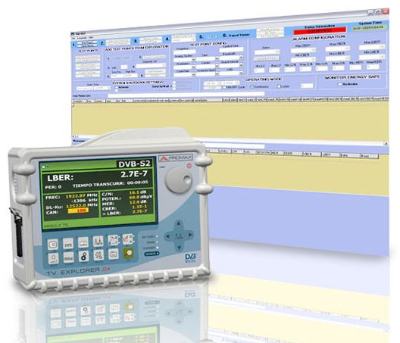

RM-404
Signal monitoring software
Software for monitoring and managing the data obtained from TV EXPLORER II / II+ / HD LE / HD / HD+ field strength meters.

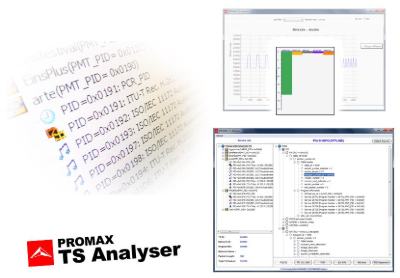

TSAnalyser
Transport stream analysis software
Free software. It analyses MPEG-2 transport streams and displays every feature graphically and as a tree. For solving multiplex problems at a desk rather than on site.
Why buy from PROTEL?
We have held the PROMAX general distributorship for Turkey since 1989 — one of the longest-running manufacturer representations in the country. PROMAX has been building telecommunications test instruments since 1963.
| Area | How it works |
|---|---|
| Distributorship | PROMAX general distributor for Turkey since 1989 |
| Manufacturing | Spain; PROMAX has built telecommunications test instruments since 1963 |
| Delivery | Stocked items from our Istanbul or Germany warehouse; the rest to order |
| Shipping | We ship worldwide from our Turkey or Germany warehouses, whichever suits the customer |
| Warranty and service | Warranty and post-warranty technical service are run from Istanbul |
| Calibration | We handle calibration and periodic maintenance together with the manufacturer |
| Software updates | Firmware and standard updates for the life of the instrument — when a new standard arrives, your instrument is updated |
| Training | Commissioning and operator training on delivery |
| Demo | We can supply a demo unit for field evaluation before you decide |
| Spare parts | Continuity in batteries, probes, adapters and accessories |
| Counterfeits | PROMAX is a widely imitated brand. Warranted, calibrated instruments come only through the authorised distributor channel |
Request a PROMAX analyzer quote
To get a quote back quickly, tell us:
- The job — antenna alignment, subscriber installation, network maintenance, headend monitoring
- The standards — DVB-T2/C2/S2, ATSC or ATSC 3.0, ISDB-T/Tb
- Whether you need IP — IPTV, SMPTE ST 2110, SRT, NDI
- Handheld or rack, how many units and how many crews they cover
- Options — fiber optics, GPS, DAB/DAB+, Wi-Fi
- Training and demo — whether you need them, and for how many people
- Destination country, so we can quote shipping and the right mains and connector configuration
E-mail: [email protected] · Phone: +90 212 221 80 60 · WhatsApp: +90 532 265 91 99
