Encoders & Multiplexers for Broadcasters

The BLANKOM encoder and multiplexer family for broadcasters: 12G-SDI 4K encoders, IPTV encoders from 4 to 24 channels and broadcast encoders with ASI/IP output and internal multiplexer; 9 products.

  • 12G-SDI · HDMI
  • H.264 · MPEG-2
  • ASI · IP
  • SPTS · MPTS
  • Project quotations
  • Selection support
PROTEL is the distributor of BLANKOM in Turkey

Tell us your source signal (SDI, HDMI, CVBS, audio), the number of channels and the output you need (ASI, IP, SPTS, MPTS); we will suggest the matching encoder. We ship worldwide from our warehouses in Germany and Turkey.

Request a quote by model Help me choose the right model

BLANKOM MPE-4000 broadcast encoder

Which encoder fits your project?

Requirement Matching model
Encoding a 12G-SDI or HDMI source in 4K at 60 fps, compact SHDE-400
12G-SDI 4K, 19-inch, redundant power supplies SHDE-4000 / SHDE-4002
Multi-channel HDMI encoding with SPTS and MPTS output EMU-8500 (8/16/24), EMU-8600 (16/24), EMU-9500 (4/8/12)
Multi-channel HD-SDI encoding EMU-8200 (4/8/12)
H.264 / MPEG-2 broadcast encoder with ASI and IP output, ASI remux MPE-4000
ASI/IP encoder with SDI, HDMI, CVBS and YPbPr inputs MPE-4001
Encoding radio and audio services MPE-3000

12G-SDI 4K encoders and streamers

Image Model Inputs Outputs Features Quote
BLANKOM SHDE-400 4K 60 fps 12G-SDI and HDMI to IP encoder and streamer BLANKOM SHDE-400
4K 60 fps 12G-SDI and HDMI to IP encoder and streamer		 12G-SDI, HDMI, embedded audio, external analog stereo input on 3.5 mm jack GbE IP (up to 4 IP streams). USB 3.0 and TF card (Micro-SD) for recording. Input and stream resolution up to 4096×2160 at 60 fps. SRT, HTTP, HLS, FLV, RTSP, RTMP, RTMPS, UDP/RTP (unicast/multicast) and ONVIF. Compact housing with external power supply. Request a quote
BLANKOM SHDE-4000 / SHDE-4002 12G-SDI (4K) encoder and streamer, broadcast grade, 19-inch BLANKOM SHDE-4000 / SHDE-4002
12G-SDI (4K) encoder and streamer, broadcast grade, 19-inch		 12G-SDI, HDMI, embedded audio, external analog stereo input on 3.5 mm jack GbE IP (up to 4 IP streams). USB 3.0 for recording. Input and stream resolution up to 4096×2160 at 60 fps. SRT, HTTP, HLS, FLV, RTSP, RTMP, RTMPS, UDP/RTP (unicast/multicast) and ONVIF. Built for 24/7 control-room use; dual redundant power supplies. Request a quote

Multi-channel IPTV encoders: SPTS and MPTS output

Encoders that encode from 4 to 24 HDMI or SDI inputs in a 19-inch unit and can deliver a multiplexed (MPTS) output.

Image Model Inputs Outputs Features Quote
BLANKOM EMU-8500 IPTV encoder and streamer, 8/16/24 HDMI inputs BLANKOM EMU-8500
IPTV encoder and streamer, 8/16/24 HDMI inputs		 8 / 16 / 24 HDMI inputs 8 / 16 / 24 SPTS IP outputs. 1 / 2 / 3 MPTS IP outputs. SPTS and MPTS encoding, streaming function. SRT protocol. For professional IPTV systems. Request a quote

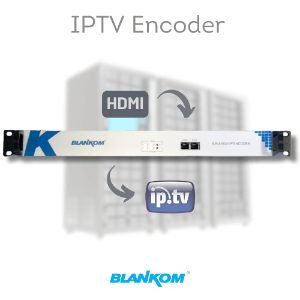

BLANKOM EMU-8600 IPTV encoder, 16/24 HDMI inputs BLANKOM EMU-8600
IPTV encoder, 16/24 HDMI inputs		 16 / 24 HDMI inputs 16 / 24 SPTS IP outputs. 2 / 3 MPTS IP outputs. SPTS and MPTS encoding, streaming function. For professional IPTV systems. Request a quote
BLANKOM EMU-9500 IPTV encoder and streamer, 4/8/12 HDMI inputs BLANKOM EMU-9500
IPTV encoder and streamer, 4/8/12 HDMI inputs		 4 / 8 / 12 HDMI inputs 4 / 8 / 12 SPTS IP outputs SPTS and MPTS encoding, streaming function. SRT protocol. For professional IPTV systems. Request a quote
BLANKOM EMU-8200 IPTV encoder, 4/8/12 SDI inputs BLANKOM EMU-8200
IPTV encoder, 4/8/12 SDI inputs		 4 / 8 / 12 HD-SDI inputs 4 / 8 / 12 SPTS IP outputs SPTS and MPTS encoding. For professional IPTV systems. Request a quote

Broadcast encoders and multiplexer: ASI and IP output

Encoders with ASI and IP output and an internal multiplexer that remultiplexes the stream arriving on the ASI input with the programmes they encode.

Image Model Inputs Outputs Features Quote
BLANKOM MPE-4000 H.264/MPEG-2 broadcast encoders, 2/4 HDMI or SDI inputs BLANKOM MPE-4000
H.264/MPEG-2 broadcast encoders, 2/4 HDMI or SDI inputs		 2 or 4 HDMI or SDI inputs. 1 ASI remux input. ASI and IP output. 2 mirrored ASI ports. 1 MPTS + 4 SPTS on the four-input platform. Gigabit DATA port. H.264/AVC and MPEG-2. CBR 1–19.5 Mbps. Low-delay modes. Redundant power option on all variants. LCD and web NMS. Request a quote

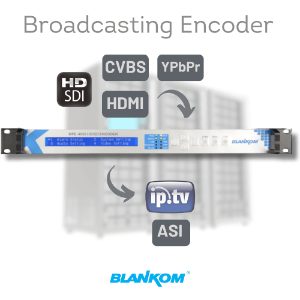

BLANKOM MPE-4001 IPTV and ASI broadcast encoder BLANKOM MPE-4001
IPTV and ASI broadcast encoder		 HD-SDI, HDMI, CVBS and YPbPr inputs. 2 ASI inputs for remux. 2 MPTS IP stream outputs. 2 ASI outputs. IP output over UDP and RTP/RTSP. HD/SD encoding. MPEG-2 and MPEG-4 AVC/H.264 video encoding. Combines encoding and multiplexing in a single unit. Request a quote
BLANKOM MPE-3000 Professional dual audio encoder BLANKOM MPE-3000
Professional dual audio encoder		 2 analog balanced audio (XLR). 2 AES/EBU digital audio (XLR). ASI input for multiplexing. 2 independent ASI outputs, BNC (mirror out of MPTS/SPTS1/SPTS2). GigE IP output over UDP/RTP (unicast/multicast). Broadcast-grade professional audio encoder. Request a quote

Why BLANKOM?

  • ASI and IP together. ASI and IP output in the same device on the broadcast encoders.
  • Internal multiplexer. ASI remux input and MPTS output.
  • Multi-channel. Up to 24 HDMI inputs in a single 19-inch unit.
  • Continuous operation. Dual redundant power supplies on the SHDE-4000, redundant power option on the MPE-4000.

Why PROTEL?

  • Distributor. BLANKOM products and technical support directly from PROTEL.
  • Complete system. Headend, encoder, IPTV server, set-top box and cabling come from the same supplier.
  • Selection support. We work out the model with you from transponder count, encryption and destination.
  • Worldwide supply. Shipped from our warehouses in Germany and Turkey.

Frequently asked questions about broadcast encoders

What is the difference between SPTS and MPTS?

SPTS (single program transport stream) carries one programme, MPTS (multi program transport stream) carries several programmes in one transport stream. SPTS is usual for IPTV distribution, MPTS for broadcast and modulator feeds.

Which models have an ASI output?

The MPE-4000, MPE-4001 and MPE-3000. All three also have an ASI input, so the incoming stream can be multiplexed with the programmes the device encodes.

Which models support the SRT protocol?

According to the manufacturer’s published information the SHDE-400, SHDE-4000, EMU-8500 and EMU-9500.

I do not know the model code. How do I get a quotation?

Send the source signal, the number of channels and the output you need; we will suggest the model.

Request a quote

  • If you know the model: model code, quantity and delivery location are enough.
  • If you do not: send the source signal, the number of channels, the encoding format and the output you need (ASI, IP).
  • If you have a specification or project drawing: send it and we will work out the matching models.

Request a quote Ask on WhatsApp
