Test and measurement · DEKTEC
MPEG Stream Analyzer, DVB Analyzer, SDI Analyzer
DEKTEC analysis software: StreamXpert for MPEG transport streams, SdEye for SDI and SMPTE 2110, RFXpert for RF, T2Xpert for DVB-T2, Atsc3Xpert for ATSC 3.0. Analysis, monitoring, recording, test and measurement.
- TR 101 290
- SMPTE 2110
- DVB-T2 · ATSC 3.0
Tell us the signal and interface you need to analyse; we will help you choose the right software and DEKTEC adapter. The software can also be ordered as a ready-to-use PC.
Request a quote by part number Help me choose the right software
Which DEKTEC software for which analysis
| Signal to be analysed | Software | Part number |
|---|---|---|
| MPEG transport stream (ASI, IP, RF); TR 101 290 compliance | StreamXpert | DTC-320-SX |
| SDI (up to 4K UHD) and SMPTE 2110 | SdEye | DTC-335-SY |
| Cable and terrestrial RF quality: MER, BER, constellation | RFXpert | DTC-340-RX |
| DVB-T2: PLPs and T2 signalling | T2Xpert | – |
| ATSC 3.0 | Atsc3Xpert | – |
| Recording a faulty stream for later inspection | VF-REC | DTC-316-VR |
The software runs with DEKTEC cards and USB devices. For hardware see: DEKTEC brand page, Video test and measurement.
DEKTEC analysis software
The five analysis applications in DEKTEC’s current programme. The software name links to the manufacturer’s page.
| Software | Image | Type | Features | Supported DEKTEC devices | Part number | Document |
|---|---|---|---|---|---|---|
| StreamXpert |   |

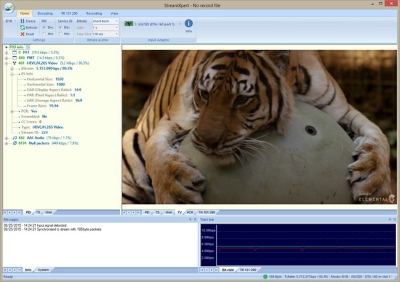

Real-time stream analyzer | Analysis of transport streams, OTT, ATSC 3.0, DAB(+), DEPI, DVB-CID, SMPTE 2110 and T2-MI. Decodes DVB-SI, ATSC-PSIP and ARIB tables; TR 101 290 templates, PCR analysis, PID grid. Video: MPEG-2, AVC, HEVC, AVS (including 4:2:2 and 10-bit); audio: MP2, (HE-)AAC, AC3, AC4, MPEG-H. Live audio and video decoding, stream recording. | ASI: DTA-2160, 2172, 2174B, 2175, 2178. Receivers: DTA-2127, 2128, 2131B, 2132, 2139C, DTU-236A, 238, 331. TS over IP: DTA-2110, 2125, 2160, 2162 or a PC network port. SMPTE 2110: DTA-2110, 2125. | DTC-320-SX; StreamXpert Lite: DTC-321-SL | Leaflet (PDF), video |
| SdEye |  |

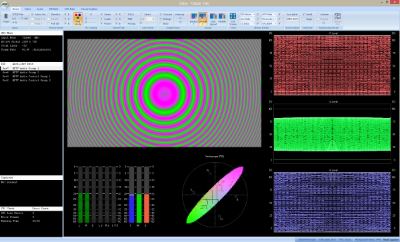

Real-time SDI and SMPTE 2110 analyzer | Real-time and offline analysis of SDI up to 4K UHD and SMPTE 2110. Waveform (Y, Cb, Cr or RGB) and vectorscope; audio bars and peak meter; ANC data, EIA 608/708 captions, OP47 and Teletext; ATC/VITC time codes, CRC and EDH error detection; Dolby, HDR/WCG and KLV metadata; SCTE 104 triggers; logging to CSV. | SMPTE 2110: DTA-2110, 2125. SDI: DTA-2172, 2174B, 2175, 2178, 2179. USB: DTU-351. | DTC-335-SY | Leaflet (PDF) |
| RFXpert |  |

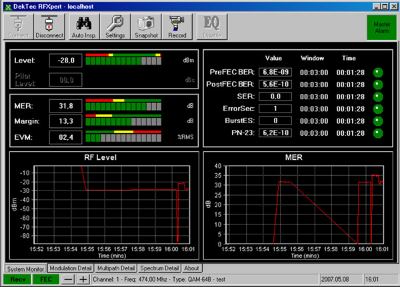

RF monitoring and analysis software | Real-time RF measurement and monitoring of terrestrial and cable digital TV signals. Pre- and post-FEC BER, SER, error seconds; histogram and time graph of RF level and MER; constellation, eye diagram, echo profile, channel response and spectrum. | ATSC 1.0 and QAM-A/B/C: DTU-236(A). DVB-C: DTU-236(A), DTU-238. DVB-C2, DVB-T/T2, ISDB-T: DTU-238. | DTC-340-RX | Leaflet (PDF) |
| T2Xpert |  |

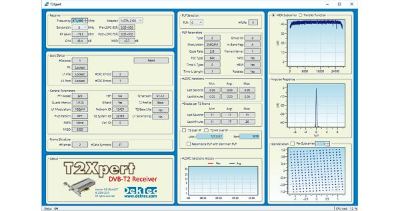

DVB-T2 analysis software | Real-time DVB-T2 analysis: single- and multi-PLP reception, T2-Lite, T2-MI output over IP. RF level, C/N, MER, PLP parameters and all T2 signalling information; transfer function, impulse response and constellation per PLP. Bandwidth: 1.7 / 5 / 6 / 7 / 8 / 10 MHz. | DTA-2131B, DTU-331 | – | Leaflet (dektec.com) |
| Atsc3Xpert |  |

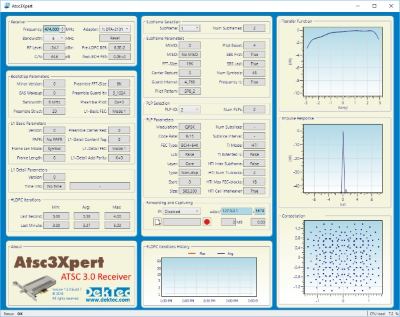

ATSC 3.0 reception and analysis software | ATSC 3.0 receiver and analyzer: RF level, C/N, BER; bootstrap, L1, subframe and PLP parameters; transfer function, impulse response and constellation. Records PLP data to PCAP files; real-time ALP and ROUTE/MMT output over IP. Bandwidth: 6 / 7 / 8 MHz. | DTA-2131B, DTU-331 | – | Leaflet (dektec.com) |
Recording, test signal generation and multiplexing software
The other applications in the current programme, running on the same DEKTEC hardware as the analysis software.
| Software | Image | Type | Features | Part number | Document |
|---|---|---|---|---|---|
| VF-REC |  |

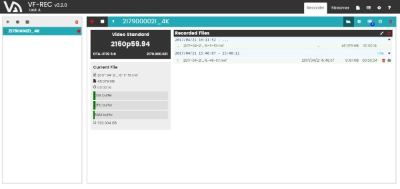

TS and SDI recording software | Recording of transport streams (ASI, IP, RF) and SDI (SD, HD, 3G). The web-based interface controls several simultaneous recordings; scheduled recording and a file merging tool. | DTC-316-VR | Manual (PDF) |
| StreamXpress |  |

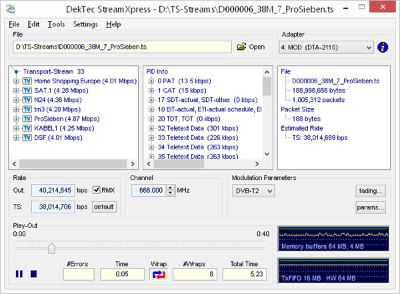

Stream player | Seamless playout over ASI, RF, SDI or IP (including SMPTE 2110/2022 and SRT) with all DEKTEC output adapters. For R&D, testing and demos. | DTC-300-SP; IP playout on a local NIC: DTC-300-NICP | Leaflet (PDF) |
| T2Xpress |  |

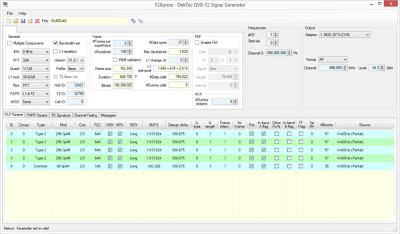

DVB-T2 signal generator software | Full control over all DVB-T2 parameters: multi-PLP, T2-Lite profile, T2-MI output, MISO simulation. | DTC-378-T2 | Leaflet (PDF) |
| Atsc3Xpress |  |
ATSC 3.0 signal generator software | Full control over ATSC 3.0 parameters: multiple subframes, multi-PLP, LDM/FDM/TDM/TFDM multiplexing, channel simulation. | DTC-386-ATSC3 | Leaflet (dektec.com) |
| TmmXpress |  |

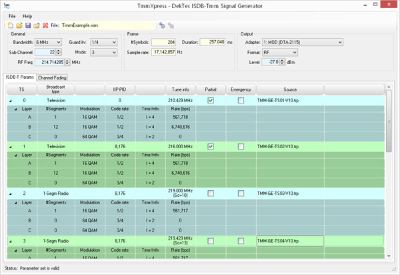

ISDB-Tmm signal generator software | Any combination of 13-, 3- and 1-segments up to 33 segments in total; generates ISDB-Tmm, ISDB-TSB or ISDB-T signals. | DTC-382-T | Leaflet (dektec.com) |
| MuxXpert |  |

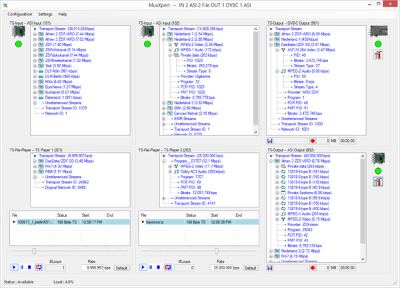

Real-time transport stream multiplexer | Remultiplexes services and service components from any input to any output; extracts and regenerates (P)SI; adds, modifies or drops PIDs, services, tables and descriptors; integrated file players. | DTC-700-MX | Leaflet (PDF) |
About DEKTEC software
- Manufacturer. DEKTEC is a Dutch company that makes PC-based test and interface hardware and software for digital TV.
- Software and hardware from one maker. The analysis software runs on DEKTEC’s own cards and USB devices.
- Current standards. New standards such as ATSC 3.0, SMPTE 2110, DAB and T2-MI are added to the software.
Why PROTEL?
- General distributor. PROTEL has been DEKTEC’s general distributor in Turkey since 2005.
- Selection support. Tell us the signal type and interface; we recommend the software and adapter combination and explain why.
- Software and hardware together. The licence and the DEKTEC card or USB device come in one quotation.
- Worldwide supply. We ship to customers worldwide.
Frequently asked questions about MPEG, DVB and SDI analyzers
What is the difference between StreamXpert and StreamXpert Lite?
Both come in the same install package; StreamXpert Lite (DTC-321-SL) is the licence with a more limited feature set. Tell us what you need and we will say which licence is enough.
Is a DEKTEC adapter required for analysis?
ASI, SDI and RF inputs require a DEKTEC card or USB device. StreamXpert can also analyse a transport stream over IP through a standard PC network port.
What is TR 101 290?
The ETSI guideline for measuring DVB transport streams; it classifies errors in three priority levels. StreamXpert applies these tests with user-defined templates.
Which software is used for SDI analysis?
SdEye. It analyses waveform, vectorscope, audio and ancillary (ANC) data on SDI up to 4K UHD and on SMPTE 2110 signals.
How is a software licence delivered?
DEKTEC licences are stored on a DEKTEC device or on a USB dongle. When ordering, you state the serial number of the device that will hold the licence.
Request a quote
- If you know the code: the part number (for example DTC-320-SX), quantity and delivery country are enough.
- If you do not: tell us the signal (ASI, IP, RF, SDI) and the standard; we recommend the software and adapter.
- If you already own a DEKTEC adapter: send its model; we tell you which software runs on it.
Technical documents
Product images and product information belong to DekTec Digital Video B.V. and are taken from the manufacturer’s publications; the manufacturer’s current documents are binding. Source: dektec.com
