Applications
Live broadcast transmission over the Internet
Take a satellite receiver output, video or camera signal from an HDMI or SDI source over the internet to any distance and recover it at the destination on HDMI, SDI or directly on a computer. Point-to-point live transmission with BLANKOM encoders and receivers.
- H.265 · H.264
- SRT · RTMP · HLS
- Point to point
- Full HD · 4K
- Project quotations
- Selection support
Tell us your source (HDMI, SDI), where the video goes and the internet speed at both ends; we will suggest the matching encoder and receiver. We ship worldwide from our warehouses in Germany and Turkey.
Four ways to use it
| Destination | Sending end | Receiving end |
|---|---|---|

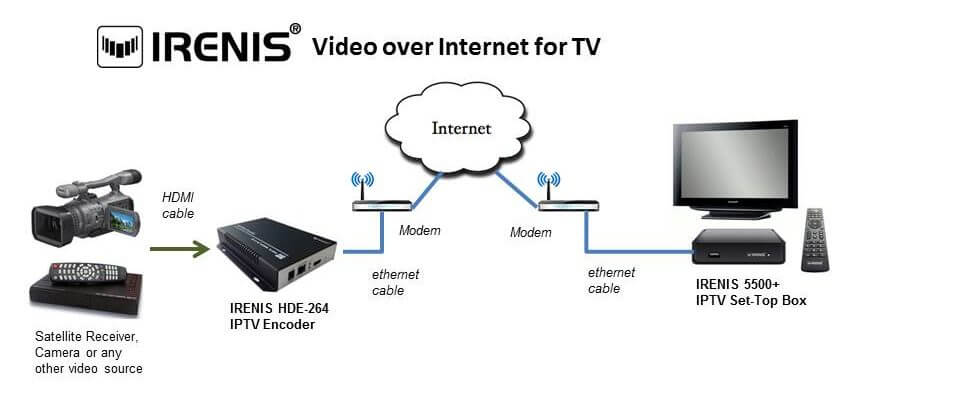

| Live video to a TV set | Encoder with HDMI input | IPTV set-top box or IP decoder |

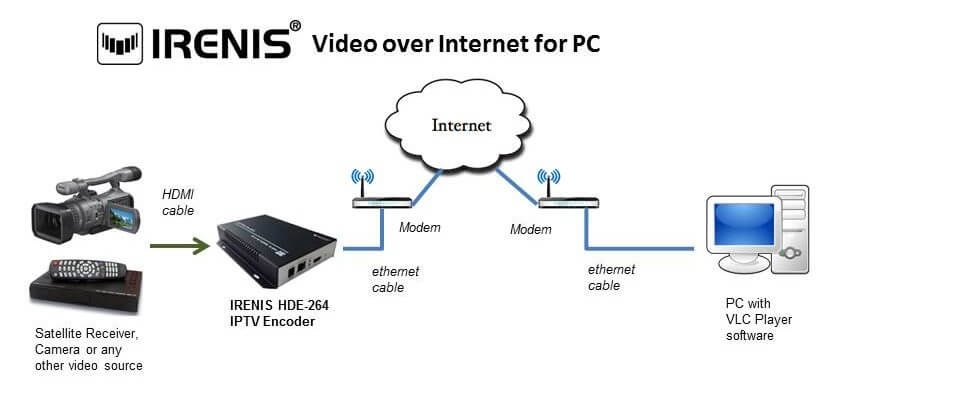

| Live video to a PC | Encoder with HDMI input | Computer with player software |

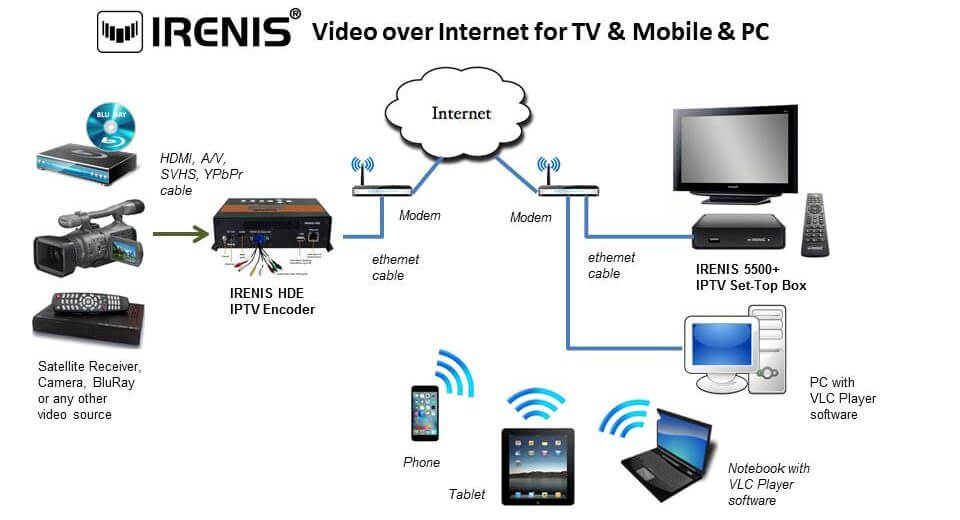

| Live video to TV, phone, tablet and PC | Encoder with multiple streams | Set-top box, phone, tablet, computer |

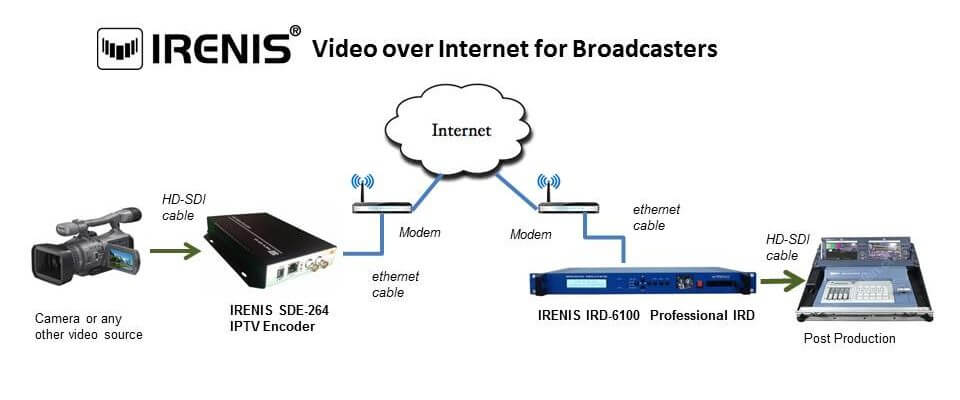

| SDI live transmission for broadcasters | Encoder with SDI input | IP decoder or IRD with SDI output |
The link can be set up in two ways: you push the content from your site to the distant location, or you pull the signal from the distant location to your site. An internet connection is needed at both ends.
Recommended internet speed
- H.264 encoding: we recommend an upload speed of at least 2 Mbps for SD and at least 4 Mbps for HD.
- H.265 (HEVC) encoding: we recommend an upload speed of at least 1.4 Mbps for SD and at least 2.8 Mbps for HD.
- These figures are PROTEL’s application guidance; the speed needed depends on the picture content and the quality required.
Encoders with HDMI and SDI input
| Image | Model | Description | Quote |
|---|---|---|---|
 |
BLANKOM HDE-264 | HDMI to IP Encoder and Streamer | Request a quote |
 |
BLANKOM HDE-265L | HDMI to IP Encoder and Streamer | Request a quote |
 |
BLANKOM HDE-275 | 4K HDMI to IP Encoder and Streamer | Request a quote |
|
BLANKOM HDE-276 | 4K 60fps HDMI to IP Encoder and Streamer | Request a quote |
 |
BLANKOM SDE-265 | SDI to IP Encoder and Streamer | Request a quote |
 |
BLANKOM SDE-16265 | 16 Channel, 3G-SDI to IP Encoder and Streamer | Request a quote |
 |
BLANKOM SHDE-400 | 4K 60 fps 12G-SDI and HDMI to IP encoder and streamer | Request a quote |
 |
BLANKOM SHDE-4000 / SHDE-4002 | 12G-SDI (4K) encoder and streamer, broadcast grade, 19-inch | Request a quote |
Receivers: set-top box, IP decoders, IRD
| Image | Model | Description | Quote |
|---|---|---|---|
 |
BLANKOM 6800+ | 4K UHD IPTV set-top box (STB) | Request a quote |
 |
BLANKOM HDD-264 | IP decoder with mosaic viewer | Request a quote |
 |
BLANKOM HDD-275 / HDD-275H | 4K IP decoder with mosaic viewer | Request a quote |
 |
BLANKOM HDD-276 | 4K IP decoder and transcoder | Request a quote |
 |
BLANKOM IRD-6310 | DVB and IPTV receiver (IRD) with 1 tuner | Request a quote |
Why BLANKOM?
- Any internet connection. No leased line needed; the video travels over the public internet.
- Real time. The source signal is encoded and transmitted live.
- Matched devices. Encoder and receiver from the same brand.
- Current protocols. Models with SRT, RTMP, HLS and UDP/RTP.
Why PROTEL?
- Distributor. BLANKOM products and technical support directly from PROTEL.
- Complete system. Headend, encoder, receiver and cabling come from the same supplier.
- Selection support. We work out the system with you from sources, channel count and destination.
- Worldwide supply. Shipped from our warehouses in Germany and Turkey.
Frequently asked questions about live transmission over the internet
Is a static IP address needed for live transmission over the internet?
It depends on the set-up. Where the stream is pushed to a platform or server it is generally not needed; where it is pulled from the distant location the sending end has to be reachable. Describe your project and we will suggest the set-up.
How much delay is there?
The delay depends on the protocol, the encoding settings and the internet connection; the actual figure is measured on the installation.
I do not know the model code. How do I get a quotation?
Send the sources, the number of channels, the destination of the streams and the viewing points; we will suggest the system.
Request a quote
- If you know the model: model code, quantity and delivery location are enough.
- If you do not: send the sources, the number of channels, the destination of the streams (LAN, internet) and the viewing points.
- If you have a specification or project drawing: send it and we will work out the matching models.
