Electromagnetic Fields (EMR) Measurement

NARDA EMR, EMF, Electric Field, Magnetic Field, Electromagnetic Radiation Measurement and Monitoring Devices

EMF compatible with European Community Directive
Electromagnetic Field Measurement System

The European Community 2013/35 / EU dated Safety Directive in all Member States in accordance with the measurement needs to be done needs to be enacted as of July 1, 2016 at the latest.
Ministry of Labor and Social Security in Turkey, began studies in this direction.
Fully compliant devices with Narda EMF Directive shown in the following list. For further information you may contact our experts .

Narda devices compatible with the EMF Directive 2013/35 / EU Directive required measurement according EMF
In accordance with Annex II
0 Hz-10 MHz between
the non-thermal effects measurement
Annex III in accordance with
100 kHz-300 GHz measurement of thermal effects
A broadband
measurement devices
50F-EHP
of ELT-400
EHP-200A
thm-1176
NBM-550
NBM-520
SRM-3006
Selective and broadband
measurement devices
EHP-50F
EHP-200A
SRM-3006
Personal protective purpose
measuring devices
Nardalert S3
Radman

NBM NARDA + EHP-50F device set short name “EMF Directive”, the official title of “DIRECTIVE 2013/35 / EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL” within 26 and June 2013, 2013/35 numbered “European Safety Directive” measurements fully compatible.

Overview of the EMF Directive 2013/35 >>

High Frequency Measurements EMR

NBM-520 Narda NBM-550 and
Electromagnetic Field Measurement System (Broadband)

NBM series, easy to use, automatic fault reset feature, it can make high precision and accuracy measurements with high dynamic range even in a very strong field. Measurement result mW / cm2 W / m2, V / m, A / m, the limit value% ‘may be Si. And when x / y / z axis may average.

  • flexible system for the measurement of electromagnetic fields
  • 2 different devices and rich range of accessories
  • A plurality of selectable probe
  • Automatic probe recognition feature
  • wherein the RS-232 control
  • 5000 measurement memory (NBM-550)
  • storing the coordinates of the GPS measurement option (NBM-550)
  • x / y / z axis in the averaging
  • Turkish menu

System:

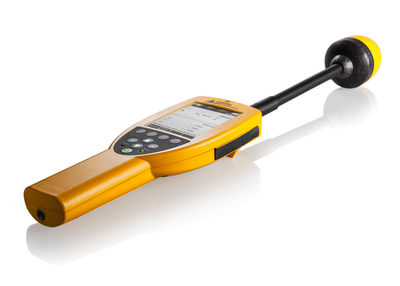

Narda NBM-500 Electromagnetic Field Measurement System NARDA NBM-520
(848 kb pdf file)

Devices:

Narda NBM-550 Electromagnetic Field Measurement Tool
(495 kb pdf file)  suitable for BTK Document

Narda NBM-520 Electromagnetic Field Measurement Tool
(372 kb pdf file)

Electric field probes:

EF-0391, … 100 kHz to 3 GHz electrical field (E-field) probe isotropic (118 kb pdf file)  suitable for BTK Document

EF-0691, … 100 kHz to 6 GHz electric field (E-field) probe isotropic (118 kb pdf file)  suitable for BTK Document

EF-0392, … 100 kHz to 3 GHz electrical field (E-field) probe is isotropic, 1300V / m of high power electromagnetic fields (118 kb pdf file)

EF-1891, 3 MHz … 18 GHz electric field (E-field) probe isotropic (pdf file 118 kb)

EF-5091, 300 MHz … 50 GHz thermo-couple electric field (E-field) probe isotropic (pdf file 114 kb)

EF-5092, 300 MHz … 50 GHz thermo-couple high-power electric field (E-field) probe isotropic (pdf file 115 kb)

EF-6092 100 MHz … 60 GHz electric field (E-field) probe isotropic (pdf file 116 kb)

Ea … ED-5091, 300 kHz … 50 GHz frequency curve for evaluating the electric field (E-field) probe isotropic. FCC, IEEE, SC6 may be ordered in each of the standard ICNIRP (593 kb pdf file)

EF-9091, 100 MHz … 90 GHz electric field (E-field) probe isotropic (pdf file 116 kb)

Magnetic Field Probes:

HF-3061, 300 kHz … 30 MHz, the magnetic field (H-field) probe isotropic (pdf file 120 kb)

HF-0191 27 MHz … 1 GHz magnetic field (H-field) probe isotropic (pdf file 119 kb)

Probe for Low Frequency Electric and Magnetic Field Analyzer:

EHP-50F 5 Hz … 100 kHz electric field and magnetic field (E-field and H-field) analyzer probe, selective and broadband measurements available, NBM-550 with or connected to a PC or autonomic measurement can isotropic (1.5 MB pdf file)

 NBM in NAR-550, EF-0691 probe and EHP-50F with 1 Hz – 6 GHz single set of leaflets for all of them for continuous measurements.

Narda NBM series Nato Stock Numbers

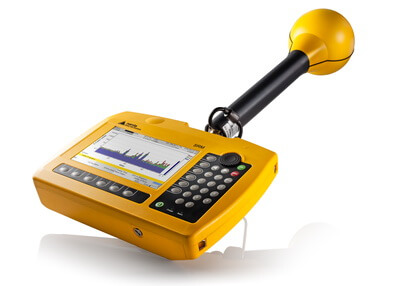

Narda SRM-3006
Electromagnetic Field Measurement and Analysis System (Selective and Wideband)

SRM-3006 9  kHz – can demonstrate electromagnetic spectrum between 6 GHz, capable of measuring the selective or broadband can operate much faster than spectrum analysis, electromagnetic radyasyonmetr not to require external PC.

The brochure PDF file English brochure

Electric field probes:

3501/03 of 27 MHz … 3 GHz electric field (E-field) probe isotropic  BTK is suitable for the document

3502/01, 420 MHz … 6 GHz electric field (E-field) probe isotropic

3531/01 of 27 MHz … 3 GHz electric field (E-field) probe, single-axis antenna

3531/04, 9 kHz … 300 MHz electric field (E-field) probe, single-axis antenna

Magnetic Field Probes:

3581/02, 9 kHz … 250 MHz magnetic field (H-field) probe isotropic

3531/02, 9 kHz … 300 MHz magnetic field (H-field) probe, single-axis antenna

Low Frequency Measurements EMR

Low Frequency Measurements with NARDA

Narda between 1 Hz-400 kHz low-frequency electric and magnetic field measurement systems, the static magnetic field measuring equipment, and substations for power generation field simulation programs

Low-frequency electromagnetic fields, it is quite effective on human health and the environment. In everyday life, we did not realize radiation, prolonged exposure can lead to physical and psychological harm. It has been proven that the low-frequency radiation caused leukemia. Power distribution lines, power transmission line, when the fixed telecommunication devices, etc. Looking at the environment that can be easily seen, are the factors that produce radiation. electromagnetic fields and radiation protection needs to be done to take the necessary measures and to use the methods of measurement.

Narda EHP-50F
isotropic electric-field (E-Field) and magnetic-field (H-FIELD) The analyzer of (1 Hz – 400 kHz)

1 Hz … 400 kHz electromagnetic field measuring device for low-frequency fields, selective and broadband measurement features

-Alkyl internal electrical measurement opportunity and isotropic magnetic-field sensors, up to 400 kHz electromagnetic field analysis ability

  • Frequency-selective measurement (spectrum)
  • broadband measurement
  • Electric field measurement
  • The magnetic field measurement
  • Weighted PEAK: weighted Measurements in the time domain using the Peak detector
    – EMF Directive 2013/35 / EU health and safety standards of measurement
    – the ICNIRP 2010, and measurements of the ICNIRP 1998 limit values
    – IEC 62 311 measurements (general device test)
  • Weighted Peak vs. Time measurement
  • recording and reporting of measured values
  • PC-controlled measurement software (it is with software)
  • detect very low levels (up to 0.3 nT)
  • 24 hours for continuous measurement of internal logging unit
  • Additional measurement standards (with firmware update)
  • NBM-550 can operate by connecting the NAR
  • NBM-550 with 1kHz up to ten 60ghz continuous measurement system devices will be formed
  • fiber optic cable for PC connectivity
  • Built-in rechargeable battery with long working time

The brochure PDF file English brochure

The brochure PDF file EHP-50F with ELT-400 Comparison of the NARDA (English)

Low Frequency Electromagnetic Field Analyzer EHP-50F and NBM-550

Narda EHP-50F 1 Hz – 400 kHz electromagnetic field analyzer probe.

The probe and the electric field of 1 Hz-400 kHz, and has the ability to measure magnetic field properties. All measurements can be made as selective or broadband.

EHP-50f’n unit has built-in memory, it can record measurements in their memory. This memory can be reported at any time in the case be transferred to a PC.

EHP-50f’y NBM-550 can also connect to the main unit or watch instantly measured values ​​by connecting to a PC, it is possible to record and report.

 NBM in NAR-550, EF-0691 probe and EHP-50F with 1 Hz – 6 GHz for continuous measurement
SINGLE SET brochure for all.

NBM NARDA + EHP-50F device set short name “EMF Directive”, the official title of “DIRECTIVE 2013/35 / EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL” within 26 and June 2013, 2013/35 numbered “European Safety Directive” measurements fully compatible.

Overview of the EMF Directive 2013/35 >>

Narda of ELT-400
magnetic field measurement device , 1Hz-400kHz

measuring ambient magnetic field strength in the range of 1Hz and 400kHz, designed to view directly as a percentage of allowable value, the system comprising the probe and the measuring instrument. Magnetic fields can be represented as the percentage of measured or absolute values ​​to 80mtesla allowed limits. Here ICNIRP measure, Occupational or General Public, Exposure Standard Mode limits are.

  • Broadband measurement of magnetic field measurement weighted PEAK: weighted Measurements in the time domain using the Peak detector – EMF Directive 2013/35 / EU health and safety standards of measurement – the ICNIRP 2010, and measurements of the ICNIRP 1998 limit values – IEC 62 311 measurements (general device test)
  • Weighted RMS: weighted Measurements in the time domain using the RMS detector – IEC 62233 measurements (electrical appliances testing)
  • Measure very high levels (up to 80 mt) (industry) Large sensor area: 100 cm2 Optional 3 cm2 probe integration possibilities the structure of the user-specific measuring system (eg automotive end.) Probe signal output (active probe)
  • easy to use
  • Excellent price performance ratio

The brochure PDF file English brochure

The brochure PDF file EHP-50F with ELT-400 Comparison of the NARDA (English)

The brochure PDF file Appliances standard EN 62233, EN replaced by the 50366’n

THM-1176 Teslametr A (magnetometer)
for static fields, magnetic flux and up to 20 Tesla
for alternating field up to 1kHz

The brochure PDF file English brochure

Narda EFC-400
simulation program to calculate the field emitted by power lines and transformer stations
Frequency range: 0 … 500 Hz Hz

The brochure PDF file English broch

Narda EFC-400ST
simulation program to calculate the field emitted by the transformer station
Frequency range: 0 … 500 Hz Hz

The brochure PDF file English brochure

Continuous Monitoring (Monitoring)

Narda SMARTS II

Field monitor (E-field)

* Measuring range: 2 MHz to 100 GHz …

* Automatic continuous monitoring of a specified area or space

* Available for various national and international standards (shaping)

* Visible and audible alarms and remote indication

* Weatherproofing for outdoor installations available

The brochure PDF file SMARTS II brochure in English NARDA

The brochure PDF file SMARTS II Nato Stock Numbers

Narda Field Monitor System AMB-8059
to enable continuous monitoring of electromagnetic fields, broadband

Measurement range: 10 Hz to 40 GHz …

Interchangeable probes from 10 Hz to 40 GHz for low frequency & high frequency applications

Multi-band probes for telecommunications monitoring

Simultaneous monitoring of electric and magnetic fields

Fully autonomous operation:

  • Solar panel power supply

  • Built-in mobile modem

  • Automatic data transfer

  • Daily reports, warnings & alarm messages via SMS

  • On-board GPS

Easy integration into test environments and Web Based Applications

Low weight, robust design, compact size for indoor and outdoor operations

The brochure PDF file NARDA monitor in the field, general brochure

The brochure PDF file AMB-8059 brochure in NARDA

Narda Field Monitor System AMS-8061
to enable continuous monitoring of electromagnetic fields,  selective

Measuring range: 100 kHz to 6 GHz …

Built in spectrum analyzer for monitoring up to 20 user defined frequency bands

Fully autonomous operation:

  • Solar panel power supply

  • Built-in mobile modem

  • Automatic data transfer

  • Daily reports, warnings & alarm massages via SMS

  • On-board GPS

Easy integration into test environments and Web Based Applications

Low weight, robust design, compact size for indoor and outdoor operations

The brochure PDF file NARDA monitor in the field, general brochure

The brochure PDF file AMS-8061 brochure in English NARDA

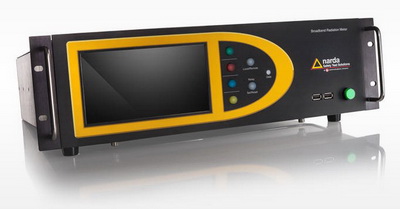

Narda NBM-580

multisensor measurement of electromagnetic radiation and the central control system

Military and civilian facilities, medical institutions, to service and repair centers of high electromagnetic radiation emitting devices!

• measuring probe can be connected up to 8. Broadband probe can be any probe or with Nardalert S3 NBM-520

• 100 kHz – 60 GHz measurement probes can be used in combination with different probes,

• Built-in high power and low alarm relays,

• Fiber optic and USB inputs,

• Ethernet and IEEE-488 connection,

• The quality of the NARDA PROTEL assurance.

consisting of an electromagnetic radiation sensor-many Narda NBM-580 allows the user to create the monitoring and alarm system. Tens or hundreds of meters distant from one point probe measurement results to the transfer and allows them to be controlled from a single point.

The brochure PDF file English brochure

Expo RF

Electromagnetic Field Surveying and Mapping Device (E-field)

  • car or on foot from the electric field measurements in motion

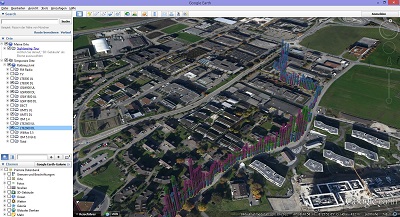

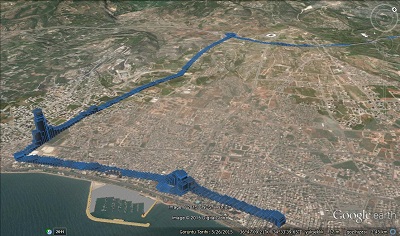

  • impressions on Google Earth map
  • 88 MHz – 5.8 GHz band in 16 different measurement
  • Android device via Bluetooth to connect and watch live value

The brochure PDF file RF expo English brochure

Personal Protection Oriented Monitoring (Personal Monitoring)

Nardalert S3

personal monitor, E-field
of 100 kHz – 50 GHz

The brochure PDF file English brochure

The brochure PDF file Personal Protection Equipment NARDA, all models

The brochure PDF file Nardalert Nato Stock Numbers



RadMan XT

Personal Monitor E- and H-field

1 MHz (ELF immune 27 MHz) – 40 GHz

The brochure PDF file English brochure

 A nice video showing the proper use of RadMan

The brochure PDF file Personal Protection Equipment NARDA, all models

Industrial Measurements

Industrial, RF leakage meter for commercial and home use for microwave ovens and heaters

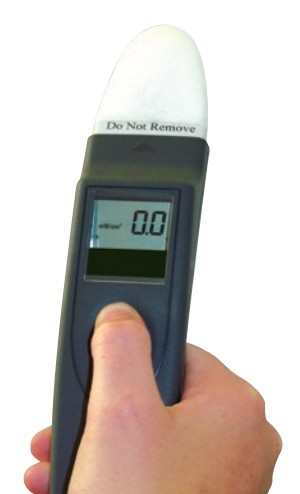

Nar 8230
Microwave leakage meter (2.45 GHz)
Measurement range: 0 … 10.0 mW / cm 2

The brochure PDF file English brochure

Narda Num
measure electromagnetic fields for industrial plants

Workplace safety, worker health
electric field and a magnetic field to the dual probe, the measuring range of 100 MHz industrial, scientific and medical (ISM) system for measuring equipment and facilities.

  • Induction furnace
  • high industrial adhesives frequency (RF heat sealer)
  • Vinyl welding machine (vinyl welder)
  • Dielectric drying
  • Dielectric heating
  • Plasma generation system
  • Semiconductor processing and positioning device

2 model:

NARDA NIM-511: 300kHz-100MHz
NARDA NIM-513: 10MHz-42MHz

The brochure PDF file English brochure

Narda EHP-200
isotropic Electrical Field (E-Field) and Magnetic Field (H-Field) Analyzer (9kHz – 300MHz)

  • Frequency-selective measurement (spectrum)
  • broadband measurement
  • The electric field measurements (0.02 … 1000 V / m)
  • Magnetic field measurements (0.6 in / m … 3000 A / m)
  • control via PC
  • Fiber Optic cable for PC connectivity

The brochure PDF file English brochure

Our factory calibration service:

Narda of the device must be calibrated once every 2 years.

Narda, makes the calibration of all equipment in the factory where he manufactured the device does not give authority to any foreign organization calibration.

Factory calibration is processed after the indelible memory of the new deviation device of the devices, so that the displayed value is also corrected with a calibration factor eliminates the need to reach the measurement results. After the factory calibration devices, it regains accuracy of measurement at the time they were first produced.

Factory calibration of the device is performed during the complete function tests, internal batteries should be replaced free of charge.

The NAR devices Germany, USA and Italy are undertaking all operations to and from the factory and calibration is now  in a much shorter period of time  we are doing it.

Please call us for more information.
More details about the products, how you use your technical knowledge and guidance to help you consult with appropriate experts PROTEL.
