Fiber optic connectivity products

Fiber Optic Connectivity Products

Everything that terminates, joins and protects a fiber link: connectors, pigtails, patch cords, adapters, patch panels, optical outlets, splice and termination boxes. Our main brand PROTELFIBERships from our Istanbul stock; Telegärtnercovers the highest quality class and MPO/MTP systems, Datwylerserves projects written to European specifications.

  • Connector
  • Pigtail
  • Patch cord
  • Adapter
  • Patch panel
  • Optical outlet
  • Splice box
  • Termination box
  • MPO/MTP
Common types from stock

We ship the common SC, LC, ST, FC and E2000 connectors, pigtails, patch cords and adapters from our Istanbul stock; proteldepo.com takes direct orders as well. Custom lengths and mixed connector combinations are made to order.

Request a quote Ask on WhatsApp

Which connectivity product do you need?

The table below shows the whole range at a glance. If you know the product name, go straight to its section; if you do not, describe what you are trying to do and we will make the selection together.

Product What it does Types Brand
Connector Terminates the end of a fiber SC, LC, ST, FC, E2000, MTRJ · PC and APC PROTELFIBER, Telegärtner
Pigtail One end connectorized, the other ready for fusion splicing 0.9 mm and 2 mm · 1 m standard PROTELFIBER, Datwyler
Patch cord Links two devices or panels Simplex, duplex · matching or mixed connectors PROTELFIBER, Telegärtner, Datwyler
Adapter Mates two connectors face to face Simplex, duplex · matching or mixed types PROTELFIBER, Datwyler
Patch panel Termination and distribution inside a 19″ rack Loaded and unloaded · 12–96 ports PROTELFIBER, Telegärtner, Datwyler
Optical outlet Fiber outlet at the user end Flush and surface mounted Telegärtner, Datwyler
Splice box Protects a field splice from moisture and impact Outdoor type, 96 and 144 fibers PROTELFIBER
Termination box Connects the cable to connectors inside the building 2–4 port surface, FTTH, unloaded box PROTELFIBER

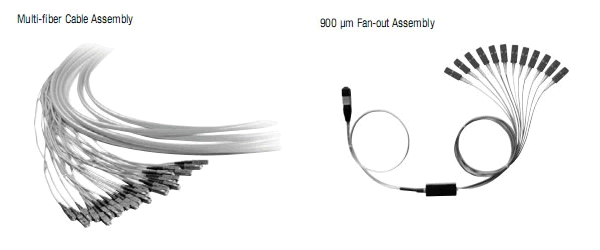

MPO/MTP Connects many fibers with a single connector Patch cord, harness, fan-out, panel Telegärtner, PROTELFIBER
Ready-to-install trunk Measured and terminated in the factory, no field splicing 12, 24 and custom core counts Belden, Datwyler

We are the Turkey distributor for every brand in the table. If the specification names a brand we supply that one; if it does not, we recommend on lead time and budget.

Fiber connectivity topics

This page summarises the range; product and ordering details for each topic are on its own page.

Fiber optic cable drums (KLOTZ)

Pre-terminated tactical fiber optic cable drums for temporary links that are laid and recovered quickly: KLOTZ models with SmartBeam, opticalCON, LC, SC, E2000 and FC connectors, plus SMPTE camera connection cables. Every order code and length is listed on our new page.

Tactical fiber optic cable drums

Connector types and polish

If the specification does not name a connector type, or you are not sure which one fits the panel you have, these two tables will settle it.

Connector Latching Typical use Note
SC Push-pull, square body FTTH, patch panels — the most common type Simplex and duplex bodies
LC Push-pull, small body SFP modules, high-density panels Takes half the space of an SC
ST Bayonet, quarter turn Older multimode installations Largely replaced by SC and LC
FC Screw thread Test instruments, high-vibration environments The thread holds the mating firmly in place
E2000 Push-pull, spring shutter Carrier networks The shutter blocks both dust and laser light
MTRJ Push-pull, duplex Older active equipment ports Carries two fibers in one body
MPO / MTP Push-pull, multi-fiber Data centre backbone, 40G and 100G 12 ends per row, up to 72 fibers

PC, UPC and APC polish

Polish Body colour Typical return loss Where it is asked for
PC — about −40 dB Older installations
UPC Blue (singlemode) about −50 dB Data and LAN links
APC Green about −60 dB FTTH, cable TV, RF-over-fiber

APC and UPC must never be mated: the 8° angled face does not seat against a flat face and damages both connectors. The figures in the table are typical — the binding value is the one on the selected product’s data sheet, which we send with the quote.

Delivery, stock and lead time

We are the Turkey distributor for all four. If the specification names a brand we supply that one; if it does not, we recommend on lead time, budget and quality class.

Brand Stock Typical lead time Strongest at
PROTELFIBER Istanbul stock · proteldepo.com 1–5 working days from stock Common connectors, pigtails, patch cords, adapters and boxes; economical and fast
Telegärtner To order, from Germany and Japan About 3 weeks Highest quality class, MPO/MTP system, made-to-order patch cords, optical outlets
Datwyler Stocking distributor Under 3 weeks European and DIN-coded specifications, data centre DCS, pre-terminated products
Belden Imported to order 4–8 weeks Ready-to-install multi-fiber trunk, special constructions and high core counts

For custom lengths and connector combinations the lead time follows the production schedule — we give a firm date with the quote.

Request a fiber optic connectivity quote

To speed up the quote, tell us:

  • Product and quantity — connector, pigtail, patch cord, adapter, panel, box
  • Connector type — SC, LC, ST, FC, E2000, MTRJ, MPO; PC or APC
  • Fiber type — singlemode OS2 or multimode OM1–OM5
  • Length — for patch cords and pigtails
  • Simplex / duplex and how many ports the panel or box needs
  • Brand requirement if any — the brand named in the specification

E-mail: [email protected] · Phone: +90 212 221 80 60 · WhatsApp: +90 532 265 91 99

Request a quote Buy from stock
