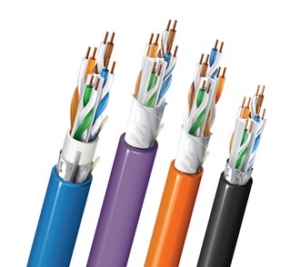

Belden Cat6 Industrial Ethernet Cable
Belden DataTuff Cat6 and Cat6A industrial Ethernet cables for harsh environments. Shielded and unshielded, in PVC, halogen-free, high-temperature, direct-burial, marine-approved and armoured versions. If you know the part number, request a quote directly. If not, describe your application and we will help you choose.
- 7927A · 7940A · 7953A
- Cat6 and Cat6A
- Shielded and unshielded
- Common types in stock
- Cut lengths
We keep commonly used types in stock and supply cut lengths as well as full reels. We ship worldwide from our warehouses in Germany and Turkey.
Request a quote by part number Help me choose the right cable
Most used Belden Cat6 industrial Ethernet cables
The five most requested types are listed below; all Cat6 and Cat6A part numbers follow in the next section.
| Part number | Construction | Jacket and rating | Choose it when | Document | Quote |
|---|---|---|---|---|---|
| Belden 7927A | 4 pairs, 23 AWG solid, unshielded | PVC · oil and sunlight resistant · UL CMR · −40 to +75 °C | General industrial fixed lines | 7927A datasheet | Request a quote |
| Belden 7940A | 4 pairs, 23 AWG solid, unshielded | PVC · UL CMR, CMX-Outdoor | Lines that also run outdoors | 7940A datasheet | Request a quote |
| Belden 7945A | 4 pairs, 23 AWG solid, foil shielded | PVC · UL CMR, CMX-Outdoor | Fixed installation in noisy environments | 7945A datasheet | Request a quote |
| Belden 7953A | 4 pairs, 23 AWG solid, foil shielded | Double PVC jacket · 600 V · mining (MSHA) approved · −40 to +90 °C | Heavy duty and trays shared with power cables | 7953A datasheet | Request a quote |
| Belden IEA002 | Cat6A, 4 pairs, 23 AWG solid, foil shielded | PVC · UL CMR, CMX-Outdoor | Lines that need 10 Gbit/s | IEA002 datasheet | Request a quote |
All Belden Cat6 and Cat6A industrial Ethernet cable part numbers
The table below lists Belden’s current Cat6 and Cat6A industrial Ethernet cables. Find the code in your specification and write to us; we quote every part number on the list.
| Part number | Conductor | Jacket | Feature |
|---|---|---|---|
| Cat6 · 4 pairs · unshielded | |||
| 7927A | 23 AWG solid | PVC | Oil and sunlight resistant · UL CMR |
| 7940A | 23 AWG solid | PVC | UL CMR, CMX-Outdoor |
| 7969A | 22 AWG solid | PVC | UL PLTC, CMR, CMX-Outdoor |
| 7972A | 24 AWG stranded | PVC | UL CMR, CMX-Outdoor |
| 7931A | 23 AWG solid | FEP | Plenum (UL CMP) · −70 to +200 °C |
| 11872A | 24 AWG solid | Double PVC jacket | UL CMR |
| Cat6 · 4 pairs · shielded | |||
| 7945A | 23 AWG solid | PVC | UL CMR, CMX-Outdoor |
| 7953A | 23 AWG solid | Double PVC jacket | 600 V · mining (MSHA) approved |
| 7970A | 22 AWG solid | PVC | UL PLTC, CMR, CMX-Outdoor |
| 7971A | 22 AWG solid | Double PVC jacket | Foil + braid shield · UL PLTC, CMR |
| 7973A | 24 AWG solid | PVC | UL CMR, CMX-Outdoor |
| 7967A | 23 AWG solid | — | F/UTP · gel filled · outside plant and burial |
| Cat6 · aluminium armoured | |||
| 121872A | 23 AWG solid | PVC | Unshielded · −40 °C |
| 127925A | 23 AWG solid | PVC | Unshielded · −40 °C |
| 127925R | 23 AWG solid | PVC | Unshielded |
| 127940A | 23 AWG solid | PVC | Unshielded · sunlight resistant |
| 127931A | 23 AWG solid | FEP, PVC | Unshielded |
| 127953A | 23 AWG solid | PVC | Foil shielded · 600 V |
| Cat6 · marine (MarineTuff) | |||
| 7940T | 23 AWG solid | Halogen-free (LSZH) | Unshielded |
| 7953T | 23 AWG solid | Halogen-free (LSZH) | Shielded |
| 777940T | 23 AWG solid | Halogen-free (LSZH) | Bronze braid armoured · ABS |
| 777953T | 23 AWG solid | Halogen-free (LSZH) | Shielded · bronze braid armoured · ABS |
| Cat6 · high flex and armoured LSZH | |||
| 50106XU | 24 AWG stranded, U/UTP | PVC | High flex |
| 50106HSF | Stranded, SF/UTP | PVC | High flex |
| 50106HFP | 26 AWG stranded, SF/UTP | PUR | High flex · CC-Link IE |
| 50106FLS | 23 AWG, F/UTP | Halogen-free (LSZH) | Steel wire armoured (SWA) · indoor and outdoor |
| 50106FLB | F/UTP | Halogen-free (LSZH) | Steel wire braid armoured |
| Cat6A · 4 pairs · 10 Gbit/s | |||
| IEA001 | 23 AWG solid | PVC | Unshielded · UL CMR |
| IEA002 | 23 AWG solid | PVC | Shielded · UL CMR, CMX-Outdoor |
| IEA003 | 23 AWG solid | FEP | Plenum (UL CMP) · −70 to +200 °C |
| IEA004 | 24 AWG stranded | TPE | Foil + braid shield · high flex |
| IEA005 | 26 AWG stranded | TPE | Foil + braid shield · high flex |
| IEA006 | 22 AWG solid | Double PVC jacket | Shielded · UL PLTC, CMR |
| IEA007 | 22 AWG solid | Double PVC jacket | Foil + braid shield · UL PLTC, CMR |
| IEA008 | 23 AWG solid | — | U/UTP · gel filled · outside plant |
| IEA009 | 23 AWG solid | — | F/UTP · gel filled · outside plant |
| 50106ASFR | 23 AWG solid | Halogen-free (LSZH) | S/FTP · anti-rodent, anti-termite |
| LF50106ASF | 24 AWG stranded | — | S/FTP · flexible |
Cat6 or Cat6A?
Cat6 cables are sufficient for most 1 Gbit/s applications. Choose Cat6A where 10 Gbit/s is needed over 100 m. Cat6A cables for PROFINET are on our Belden PROFINET page.
Bonded-Pair technology
In Belden’s patented Bonded-Pair construction the two conductors of each pair are bonded together, so pair geometry and performance are maintained when the cable is pulled and bent.
Marine, mining and outside-plant types
The ABS-approved MarineTuff series for ships and offshore; mining (MSHA) approved 7953A; gel-filled 7967A, IEA008 and IEA009 for outside plant and burial.
Armoured versions of Belden Cat6 cables
Many of the cables on this page are also available with factory-applied armour. Armour protects the cable against crushing and impact and allows installation without conduit. Each armoured code is shown with its unarmoured base code. The list for all networks is on Belden Armored Data Cable.
Why Belden?
- Bonded-Pair technology. Maintains signal integrity despite bending and pulling during installation.
- Built for harsh environments. Made for oil, sunlight, vibration and a wide temperature range.
- A broad range. Cat6 and Cat6A; shielded, armoured, marine, mining and high-flex options.
- A datasheet for every code. Current manufacturer documents ready for your approval and tender files.
Why PROTEL?
- Authorised Belden distributor. Products come directly from the manufacturer.
- Stock. Commonly used types are kept in stock.
- Cut lengths. You do not have to buy a full reel.
- Selection support. Tell us your line and devices; we recommend a type and explain why.
- Worldwide supply. Shipped from our warehouses in Germany and Turkey.
Frequently asked questions about Cat6 industrial Ethernet cable
What is the difference between industrial Cat6 cable and standard Cat6 cable?
Industrial cable has a more durable jacket, oil and sunlight resistance and a wider temperature range. Office-grade cable can fail early on the factory floor.
Should I choose shielded or unshielded?
Shielded near noise sources such as drives, motors and welding equipment; unshielded is sufficient on lines with low noise.
Which Cat6 cable is used outdoors?
CMX-Outdoor rated types (for example 7940A, 7945A). Gel-filled 7967A for burial or outside-plant runs.
Should I buy Cat6 instead of Cat5e?
For new plants, Cat6 or Cat6A is the safer choice for the future. For existing 100 Mbit/s and 1 Gbit/s lines, Belden Cat5e industrial Ethernet cable is also sufficient.
Do I have to buy a full reel?
No. We supply cut lengths. The part number and the total length are enough.
Request a quote
- If you know the code: the part number, total length and delivery country are enough.
- If you do not: send your application, line length and environment; we recommend the type.
- If you have a specification or BOQ: send it and we will return the matching part numbers.
