blankom

BLANKOM was founded in 1919 as a German technology company, having developed and manufactured high-quality, modern, innovative TV headend systems.

BLANKOM® is one of the well established brands of Germany in the antenna headend solutions sector. BLANKOM® well known for its quality and durability not only in Germany, but in more than 50 countries worlwide, being supported through its local distributors.

BLANKOM® was acquired by German IRENIS in 2017. The first units of the new 5th generation product range are already on sale.

  • SMATV, CATV and terrestrial-TV headends
  • IPTV headends
  • IPTV systems for MSO, telco’s and cable-tv operators
  • Hospitality IPTV systems
  • Professional broadcasting equipment

New, 5. generation   Professional Headend Equipment product range

Wide choice of IPTV, DVB-C and DVB-T Headend Units with up-to-date features

All new items are in 19″ rack mountable enclosure and have web-browser control access over LAN, WAN, Internet

BLANKOM Turkey website: www.blankom.com.tr

BLANKOM manufacturers web site: www.blankom.de

PROTEL is the sole distributor of Blankom® products for Turkey, Middle East, Russia and CIS Countries.

BLANKOM is the right choice

IRENIS 100% compatible

Tested, full compatibility between all IRENIS models.

Implementation support, training.

IPTV, Internet TV, OTT, Video-over-IP

DVB IPTV

Wide choice of IPTV equipment:

  • IP Encoder (11 different models)
  • IPTV Set-Top Box
  • IPTV IRD
  • DVB/IP Gateway
  • IPTV headend with media server
  • Transcoder

HEVC (H.265) equipment

HEVC H.265
  • HEVC IP Encoder with HDMI input
  • HEVC IP Encoder with HD-SDI input
  • HEVC IPTV Set-Top Box

Broadcast grade professional line

IRENIS Broadcasting equipment
  • IRD with DVB & IP input
  • HD-SDI Encoder
  • SDI Encoder
  • HDMI Encoder
  • CVBS Encoder

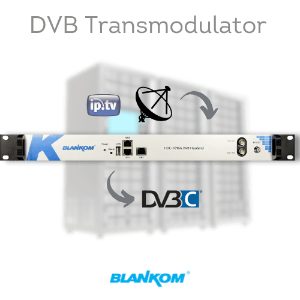

SMATV Headend
16 or 24 Tuner

HDC-7016A / HDC-7024A

5. Generation BLANKOM DVB-C Headend Technology.

  • Satellite, IPTV and ASI input, DVB-C output, with Multiplexer.
  • 16 Channel DVB-C (QAM) Headend System
  • 16 or 24 DVB-S/S2 tuner inputs for 16 FTA satellite transponders
  • 512 IPTV inputs (UDP, RTP)
  • 2 ASI inputs
  • 16 groups multiplexing + 16 groups scrambling
  • 16 groups QAM modulating

The content of the individual DVB-C packages can be freely configured from all available input channels.

The device can be controlled from anywhere on LAN, WAN or Internet.

SMATV Headend
12 Tuner

HDC 6012

5. Generation BLANKOM DVB-C Headend Technology.

  • Satellite and IPTV input, DVB-C output, with Multiplexer.
  • 4 Channel DVB-C (QAM) Headend System
  • 12 DVB-S/S2 tuner inputs for 12 FTA satellite transponders
  • 128 IPTV inputs (UDP, RTP)
  • 4 groups multiplexing + 4 groups scrambling
  • 4 groups QAM modulating

The content of the individual DVB-C packages can be freely configured from all available input channels.

The device can be controlled from anywhere on LAN, WAN or Internet.

SMATV Headend
8 Tuner, CI

HDC 6008CI

5. Generation BLANKOM DVB-C Headend Technology.

  • Satellite and IPTV input, DVB-C output, with Multiplexer.
  • 4 Channel DVB-C (QAM) Headend System
  • 8 DVB-S/S2 tuner inputs
  • 4 CI for CAM modules
  • 128 IPTV inputs (UDP, RTP)
  • 4 groups multiplexing + 4 groups scrambling
  • 4 groups QAM modulating

The content of the individual DVB-C packages can be freely configured from all available input channels.

The device can be controlled from anywhere on LAN, WAN or Internet.

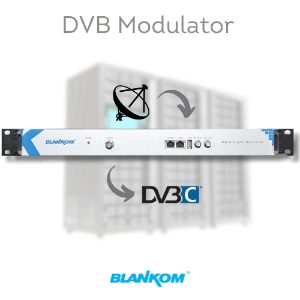

DVB-C Modulator
8 HDMI

HDM 8508C

5. Generation BLANKOM DVB-C Headend Technology.

  • 8 HDMI inputs
  • 4 Channel DVB-C (QAM) Headend System
  • 128 IPTV inputs (UDP, RTP)
  • 1 DVB-C input
  • On screen graphics, scrolling text insertion
  • 4 groups multiplexing + 4 groups scrambling
  • 4 groups QAM modulating
  • 4 MPTS IPTV (UDP/RTP) output

The content of the individual DVB-C packages can be freely configured from all available input channels.

The device can be controlled from anywhere on LAN, WAN or Internet.

DVB-C Modulator
12 HDMI

HDM 8512C

5. Generation BLANKOM DVB-C Headend Technology.

  • 12 HDMI inputs
  • 4 Channel DVB-C (QAM) Headend System
  • 128 IPTV inputs (UDP, RTP)
  • 1 DVB-C input
  • On screen graphics, scrolling text insertion
  • 4 groups multiplexing + 4 groups scrambling
  • 4 groups QAM modulating
  • 4 MPTS IPTV (UDP/RTP) output

The content of the individual DVB-C packages can be freely configured from all available input channels.

The device can be controlled from anywhere on LAN, WAN or Internet.

DVB-T Modulator
8 HDMI

HDM 8508T

5. Generation BLANKOM DVB-T Headend Technology.

  • 8 HDMI inputs
  • 4 Channel DVB-T Headend System
  • 128 IPTV inputs (UDP, RTP)
  • 1 DVB-C input
  • On screen graphics, scrolling text insertion
  • 4 groups multiplexing
  • 4 groups DVB-T modulating
  • 4 MPTS IPTV (UDP/RTP) output

The content of the individual DVB-T packages can be freely configured from all available input channels.

The device can be controlled from anywhere on LAN, WAN or Internet.

DVB/IP Gateway
4 Tuner, CI

IGS-700
  • 4 Tuner inputs DVB-S/S2 (DVB-C, DVB-T/T2 option)
  • 1 ASI & 4 MPTS IP (UDP) input
  • IP (48 SPTS, 4 MPTS) over UDP and RTP / RTSP output
  • 4 CI slots for descrambling for CAM modules
  • BISS key decryption
  • DiSEqC support
  • 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
  • LCD display, remote control and firmware, web NMS management
  • 1000M Base-T Ethernet interface (unicast/multicast)
  • Updates via web
  • Professional quality, breakthrough price

DVB/IP Gateway
8 Tuner

IGS-800
  • 8 Tuner inputs DVB-S/S2, DVB-C, DVB-T multi-tuner
  • IP (128 SPTS) over UDP and RTP / RTSP output
  • FTA only
  • DiSEqC support
  • 90 Mbps max. bitrate per each input
  • Supports maximum 128 PID mapping per input
  • Remote control and firmware, web NMS management
  • 2x 1000M Base-T Ethernet interface (unicast/multicast) and 2x SFP module interface
  • Updates via web
  • Professional quality, breakthrough price

DVB/IP Gateway
16 Tuner

IGS-900
  • 16 Tuner inputs DVB-S/S2 (DVB-C, DVB-T/T2 option)
  • 2 ASI  input
  • 2 versions:
    • IGS-900: IP (512 SPTS) over UDP and RTP/RTSP output
    • IGS-900 MPTS: IP (16 MPTS) over UDP and RTP/RTSP output
  • FTA only
  • BISS key decryption
  • DiSEqC support
  • Remote control and firmware, web NMS management
  • 2x 1000M Base-T Ethernet interface (unicast/multicast)
  • Updates via web
  • Professional quality, breakthrough price

IP to QAM
16 Channel

HDC 5016

5. Generation BLANKOM DVB-C Headend Technology.

  • IPTV input, DVB-C output, with Multiplexer.
  • 16 Channel DVB-C (QAM) Modulator
  • 1024 IPTV inputs (UDP, RTP)
  • 16 groups multiplexing + 16 groups scrambling
  • 16 groups QAM modulating
  • 16 IPTV MPTS output

The content of the individual DVB-C packages can be freely selected from all available input channels.

The device can be controlled from anywhere on LAN, WAN or Internet.

Professional IRD
DVB-S2 and IPTV

IRD-6100
IRENIS IRD-6100 IPTV DVB-S/S
  • DVB-S/S2 L-Band Input,
  • IPTV Input,
  • ASI Input
  • HD-SD/SDI, 4x ASI, YPbPr, HDMI, CVBS Video Output
  • Balanced and Unbalanced Audio, S/PDIF Output
  • 32 SPTS and 1 MPTS IP Output
  • Broadcast quality
  • CI for CAM Module
  • H.264 and MPEG-2 Decoding
  • Embedded Re-multiplexer
  • BISS Descrambling: Mode 1 and Mode E
  • CC (Closed Caption) for SDI and CVBS Interfaces
  • AC3 pass through for SDI Interface
  • Front panel LCD monitor
  • Web Management, NMS/SNMP Network Management

BLANKOM

UHD 4K – IP Streamer & Encoder
12G-SDI and HDMI Inputs

SHDE-4000
BLANKOM SHDE-4000 Streamer Encoder
  • Broadcast Grade 12G-SDI and HDMI Streamer & Encoder
  • Up to 4Kp@60fps (2160p60) UHD resolution.
  • HEVC (H.265), H.264, MJPEG encoding
  • HTTP(S), RTSP, RTMP(S), UDP/RTP, FLV, HLS, ONVIF, MJPEG, SRT; unicast/multicast output.
  • Online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc. compatible
  • Suitable for video-over-ip application through internet.
  • Max. 2 simultaneous and independent live stream broadcasting encoder engines (Main- and Secondary) to multiple destinations
  • The same content can be simultaneously streamed out with H.265 and H.264
  • Logo and/or Text Overlay injections into the running video
  • Content-Recording to USB 3.0
  • 19″ 1 RU rack mount type with dual power supply

All BLANKOM encoders offer perfect image quality and stable system operation at an affordable price.

pdfIP Encoder & Streamer comparison chart

IPTV Encoder
8 … 24 HDMI

EMU-8508/8512/8516/8520/8524

5. Generation BLANKOM IPTV Headend Technology.

  • 5 versions:
    • 8/12/16/20/24 HDMI inputs
    • 8/12/16/20/24 SPTS IPTV outputs
  • 1 MPTS IPTV (UDP/RTP) output
  • 1 ASI output (option)
  • On screen graphics, scrolling text insertion
  • up tp 1080p60 HD resolution
  • Accurate PCR adjusting
  • PID filtering and re-mapping
  • PSI/SI rebuilding and editing
  • “Null PKT Filter” function

The device can be controlled from anywhere on LAN, WAN or Internet.

IPTV Encoder
4 or 8 HDMI

EMU-4230/8230

5. Generation BLANKOM IPTV Headend Technology.

  • 4 or 8x HDMI and 1x ASI Input, 2x ASI outputs.
  • 1 MPTS or 4/8x SPTS UDP IP Output.
  • Broadcast quality.
  • H.264 video encoding.
  • MPEG1 Audio Layer 2 audio encoding (Optional: LC-AAC and HE-AAC (V2) audio encoding).
  • PSI/SI editing and inserting.
  • Ultra low bit rate encoding.
  • IP null packet filter.
  • Real-time output bit-rate monitoring.
  • LCD / keyboard and NMS (Web/SNMP) operation.
  • Update device through NMS (Web/SNMP) port.

The device can be controlled from anywhere on LAN, WAN or Internet.

IPTV Encoder
4 or 8 HD-SDI

EMU-4220/8220

5. Generation BLANKOM IPTV Headend Technology.

  • 4 or 8x HD-SDI/SD-SDI and 1x ASI Input, 2x ASI outputs.
  • 1 MPTS or 4/8x SPTS UDP IP Output.
  • Broadcast quality.
  • H.264 video encoding.
  • MPEG1 Audio Layer 2 audio encoding (Optional: LC-AAC and HE-AAC (V2) audio encoding).
  • PSI/SI editing and inserting.
  • Ultra low bit rate encoding.
  • IP null packet filter.
  • Real-time output bit-rate monitoring.
  • LCD / keyboard and NMS (Web/SNMP) operation.
  • Update device through NMS (Web/SNMP) port.

The device can be controlled from anywhere on LAN, WAN or Internet.

Headend Multiswitch 9×16

BLANKOM BMS-0916
  • 8 SAT-IF input, 1 terrestrial input, 9 cascade throughput, 16 receiver output
  • Active terrestrial input (passive optional available)
  • 9 cascade throughput
  • Redundant power supply with permanent load balancing
  • DiSEqC 1.0 support
  • 19″ 2 RU rack mountable enclosure
  • Made in Germany
  • Professional quality, breakthrough price

Headend Multiswitch 9×32

BLANKOM BMS-0932
  • 8 SAT-IF input, 1 terrestrial input, 9 cascade throughput, 32 receiver output
  • Active terrestrial input (passive optional available)
  • 9 cascade throughput
  • Redundant power supply with permanent load balancing
  • DiSEqC 1.0 support
  • 19″ 2 RU rack mountable enclosure
  • Made in Germany
  • Professional quality, breakthrough price

Headend Multiswitch 17×32

BLANKOM BMS-1732
  • 16 SAT-IF input, 1 terrestrial input, 17 cascade throughput, 32 receiver output
  • Active terrestrial input (passive optional available)
  • 17 cascade throughput
  • Redundant power supply with permanent load balancing
  • DiSEqC 1.0 support
  • 19″ 2 RU rack mountable enclosure
  • Made in Germany
  • Professional quality, breakthrough price

IP Encoder (H.264)

BLANKOM HDE-264 IP STREAMER ENCODER

BLANKOM IPTV Encoder & Streamer comparison chart

IP Encoder (HEVC/H.265)

BLANKOM SDE-265 IP STREAMER ENCODER

IPTV Set-Top Box

IRENIS IPTV STB

DVB-C Modulator

IRENIS HDM
  • HDM DVB-C modulator, recorder and player with HDMI, CVBS, YPbPr, S-VIDEO inputs
Consult us for more information.
Contact our experts for technical details and product selection support.
