SMATV, Cable TV, MATV Distribution

29 years of experience in the public distribution system based satellite dish antenna. 5th generation of high-tech BLANKOM broadcast center (headend). Fiber optic cabling products. International sales experience.

Satellite reception and closed circuit TV broadcast hub (headend)

Sites, Apartment, TV Broadcast Center for Villa
Hotel, Hospital TV Broadcast Center
Office, the Authority for TV Broadcast Center Mall
Campus, School, Training Institutions Center for Broadcast TV

Hundreds of television and radio channels via RF and fiber optic cabling to all viewers can send your plant. Publications numeric (digital) will move in the same way the original quality of the original broadcast resolution (SD, HD, 4K) reaches the television set.

closed-circuit TV broadcast distribution from local sources

Digiturk / dsmart etc. recipient from, from a computer, from the recording unit, the security camera, DVD / TV system to broadcast with HD quality from Blu-ray players in distribution,

Locally, facilities, space inside HD and 4K distribution modulators

Coaxial and Fiber Optic Cabling

Coaxial antenna cables and connectors

Fiber optic cables

Fiber optic transmitter, receiver, amplifier, differential

Multimedia Cabling

High quality HDMI, DVI, Displayport, CVBS (Audio / Video), RGB-looking cables

Multimedia connectors

4K broadcast products can carry

Long-distance multimedia cable systems

Turkey’s highest quality range of products

TV Broadcasting Center (Headend)

Broadcasting Center QAM
QAM Modulator
DVB-T Broadcast Center
Transmodulators
Headend Multi-
QAM and IPTV combined Devices

DVB Technology

QAM and DVB-T HD Modulator

RF ve Fiber Cables

Coaxiel Cable
Fiber Optic Cable
Coacsiyal Connector

Multimedia Cabling

HDMI, DVI, Displayport, CVBS, RGB intermediate cable and wiring products

Promax

Test And Measurement

Satellite and TV Field Strength Meter to
Cable TV Testers
Cable Tester

HD Modülatör

The easiest, most economical method for the distribution of HDMI signals

IRENIS

Ideal for a small number of broadcast distribution

QAM modulation with coaxial cable or DVB-T HD broadcasts via the distribution network

A few Digiturk HD television broadcast distribution even in the most economical method

successfully used in large networks

700CT models with info channel creation, getting the info channel Vedra over the internet or remove features can also record broadcasts to USB memory. The hotel is ideal for use in places such as shopping centers.

BLANKOM

8 or more publications are ideal for distribution

Internal multiplexer through publications QAM or DVB-T packets in a single frequency coupling feature

all of the required publication or add a logo feature

Ability to add message with the requested post or all of the marquee

DVB-T
HD Modulator

IRENIS HDM 500T

IRENIS HD Modulator

HDMI input DVB-T output

The most economical solution for distributing HD-quality television broadcasts.

The hotel site is designed for HD television distribution in places such as restaurants.

bilgi1_25  Click for more information.

QAM / DVB-T
HD Modulator

IRENIS HDM 700CT

IRENIS HD Modulator

HDMI or analog A / V, SVHS, RGB input, DVB-C and DVB-T output.

advanced solution for distributing HD-quality television broadcasts to the.

The hotel site is designed for HD television distribution in places such as restaurants.

Info channel via a USB memory can be played continuously.

USB memory can record broadcasts.

And controls can be remotely controlled via the Internet.

bilgi1_25  Click for more information.

DVB-C Modulator
8 HDMI

HDM 8508C

BLANKOM 5th generation DVB-C Headend Technology

  • 8 HDMI  input
  • 4 channels DVB-C (QAM) Headend System
  • 128 IPTV input (UDP, RTP)
  • One input DVB-C
  • Adding graphics and scrolling text on the screen
  • Group multiplexer 4 + 4 group encoding
  • 4 groups QAM modulator
  • 4 MPTS IPTV (UDP / RTP) output

DVB-C packets may be formed if desired by the content multiplex.

And controls can be remotely controlled via the Internet.

bilgi1_25  Click for more information.

TV Broadcasting Center (Headend)

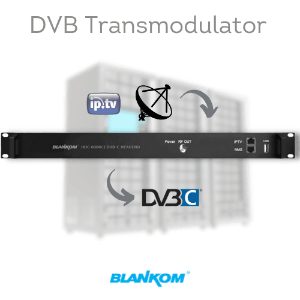

SMATV Headend
8 Transponder, CI

HDC 6008CI

BLANKOM 5th generation DVB-C Headend Technology

Satellite and IPTV inputs, DVB-C output, the Multiplekserl
4 channels DVB-C (QAM) Headend System
8 DVB-S / S2 satellite transponder input
4 C decoder module slot (for encrypted transmissions)
IPTV broadcast input 128 (UDP)
Group multiplexer encoder 4 + 4 group
4 DVB-C package output
DVB-C packets may be formed if desired by the content multiplex.

And controls can be remotely controlled via the Internet.

bilgi1_25  Click for more information.

SMATV Headend
12 Transponder

HDC 6012

BLANKOM 5th generation DVB-C Headend Technology

Satellite and IPTV inputs, DVB-C output, the Multiplekserl
4 channels DVB-C (QAM) Headend System
12 DVB-S / S2 satellite transponder input
FTA (FTA) for publications
IPTV broadcast input 128 (UDP)
Group multiplexer encoder 4 + 4 group
4 DVB-C package output
DVB-C packets may be formed if desired by the content multiplex.

And controls can be remotely controlled via the Internet.

bilgi1_25  Click for more information.

SMATV Headend
16 Transponder

HDC 7016

BLANKOM 5th generation DVB-C Headend Technology

Satellite and IPTV inputs, DVB-C output, the Multiplekserl
16 channels of DVB-C (QAM) Headend System
16 DVB-S / S2 satellite transponder input
FTA (FTA) for publications
IPTV broadcast input 512 (UDP)
2 ASI input
Multiplexer encoder 16 groups 16 groups +
16 DVB-C package output
DVB-C packets may be formed if desired by the content multiplex.

And controls can be remotely controlled via the Internet.

bilgi1_25  Click for more information.

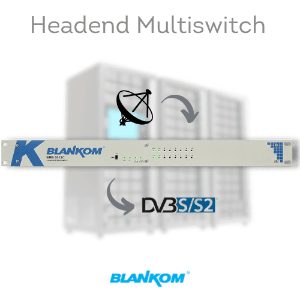

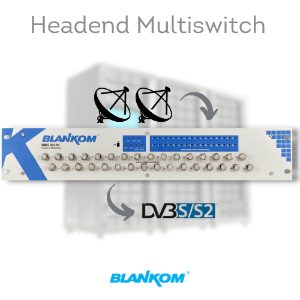

Headend Multiswitch
9×16, 9×32, 17×32

BMS 0916/0932/1732

BLANKOM 5th generation DVB-C Headend Technology

  • Satellite and IPTV inputs, DVB-C output, the Multiplekserl
  • 16 channels of DVB-C (QAM) Headend System
  • 16 DVB-S / S2 satellite transponder input
  • FTA (FTA) for publications
  • IPTV broadcast input 512 (UDP)
  • 2 ASI input
  • Multiplexer encoder 16 groups 16 groups +
  • 16 DVB-C package output

DVB-C packets may be formed if desired by the content multiplex.

And controls can be remotely controlled via the Internet

Coaxial RF and Fiber Optic Cable

Cable TV and Satellite
(Koax and Fiber)

Copper or steel coaxial cable, fiber optic cable

Cable Type: RG59, RG6, RG11, 2.2mm, 3.3mm, singlemode fiber

Usage areas:

Cable TV (CATV) 0.1-862 MHz

Shielding ratio (at 0.1-1000 MHz> 100dB, return channel etc …)
the electrical and structural values (reflection loss, resistance to stretching)
Resistance (Corrosion, nitrogen foam technology, 15-year warranty)

Satellite-TV (DTH-SMATV) 950-2400 MHz

Weight loss (950 – 2400 MHz band in the overall value)
UV resistance (outdoor use)
thickness as possible must be low (IF distribution use key LNB)
Flexibility

75 Ohm Coaxial

  • H121, H123, H125, PRG11, COAX3 …
  • RG59, RG6, RG11

  Click for more information.

You can pick up the cut with models of meters used widely.

Fiber Optic

  • All Belden fiber optic cables are offered for sale at 2100m or 4200m rolls

Belden fiber optic cables catalog:

FiberOpticCatalog

  Click for more information.

Amplifiers, Line Amplifier

You can supply us all kinds of TELEVES line amplifier. Those marked in red are our perpetual inventory items.

Televes 47-860 MHz (VHF/UHF) Hat Amplifikatörleri:
5323 Compact single input: VHF / UHF 35 / 45dB, 115 / 122dbuv, interstage attenuator
4510 Compact single input: VHF / UHF, recycling 5-30mhz, 26 / 44db / 121dbuv
5379 Compact single input VHF / UHF, recycling 5-30mhz 29 / 37dB / 114dbuv, push-pull
4512 Compact single input: VHF / UHF, recycling 5-65mhz, 26 / 44db / 121dbuv
5383 Compact single input VHF / UHF active recycling 5-65mhz 29 / 37dB / 114dbuv, push-pull
5385 Compact single input: 47 … 422 / UHF MHz, 54 dB / 124 dBuV
5308 Compact, single-entry VHF / UHF slope control, 44db / 122dbuv
5373 Minicom single input: 47 to 454/470 to 862 MHz, 33/38 to 47 dB / 116 dBuV
TELEVES 47-2150 MHz (VHF / UHF + SAT) Line Amplifier:
5737 Compact 47 to 2150 MHz, 28-36 (MATV) / 26 ··· 38 (IF) db 118 / 120dbuv active recycling from 5 to 30 MHz, UL
5365 Compact 47 to 2150 MHz, 28 … 36 (MATV) / 26 … 40 (IF) dB, 120/118 dBuV active recycling 5-65 MHz
5398 Compact 47 to 2150 MHz, 28 … 36 (MATV) / 26 … 40 (IF) dB, 120/118 dBuV active recycling 5-30 MHz
5397 Compact 47 to 2150 MHz, 30 … 40 (MATV) / 26 … 40 (IF) dB, 114/118 dBuV active recycling 5-65mhz
5305 Compact 47 to 2150 MHz, 30 … 40 (MATV) / 26 … 40 (IF) dB, 114/118 dBuV active recycling 5-30 MHz
5363 Minikom 2 girişli: IF 2150 – mix. MATV, 45dB / 124 dBuV- 22KHz
TELEVES 47 to 860 MHz (VHF / UHF) Line Amplifier underground type:
5456 40-60 VAC / 5 A waterproof
4513 47- 862 MHz, 26/36 dB / 121 dBuV active recycling 5-65 MHz
4511 47- 862 MHz, 26/36 dB / 121dbuv active recycling from 5 to 30 MHz,



VHF/UHF/FM, 44dB

TELEVES 5308 model, 40-860 MHz high power amplifier line
  • Kompact 47-2150 MHz,
  • 28 … 36 (VHF / UHF / FM) / 26 … 40 (SAT) dB,
  • 120/118 dBµV,
  • active return 5-30 MHz,
  • single input, single output + input and output separately test outputs,
  • input and output for individual gain control 6 different slant, debilitating and even perfect compliance with the pre-amplifier settings

 (TELEVES 5398 user’s manual)

Uydu + VHF/UHF/FM Genişbant, 40dB

TELEVES 5398 model, 47-2150 MHz line of high-power amplifier
  • Kompact 47-862 MHz,
  • 44 dB
  • 122 dBµV,
  • single-input, single output + test output,
  • oblique gain control

 (TELEVES 5308 user’s manual)

Over Fiber Optic Cable VHF / UHF / SAT Signal Transmission

Fiber Optic Transmitters, Receivers, Amplifiers Optical Multiplexer, Fiber LNB GPON Deployment System

VHF / UHF and satellite IF distribution band (54-2150 MHz)

Single bristle distribution over optical fiber 54 to 2150 MHz

QAM, PAL analog and wide area with a single cable of Digiturk broadcast, numerous user distribution opportunity

structures that do not require constant maintenance

Even in medium-sized coaxial distribution network than the economic cost

Fiber Optic Receiver

TELEVES Fiberko controlled XC series No.

VHF / UHF / transmitting satellite signals from point to point fiber optic cable or fiber optic transceivers for optical distribution networks. 1310 / 155N input 54 to 2150 MHz output.

  • all of 54 to 2150 MHz frequency range, converts fiber optic signals
  • 1310 nm or 1550 nm singlemode

Fiber Optic Transmitters

TELEVES T.0X Series

VHF / UHF / fiber transfer point to point fiber optic cable or satellite signal transmitter for optical distribution networks. Headend 54 to 2150 MHz output signal to convert the distortion as 1310nm and 1550nm optical signal transmitter types.

  • Convert all of the optical signal fiber 54 to 2150 MHz frequency range
  • models with output power up to 10 dBm
  • 1310 nm or 1550 nm singlemode
  • High energy efficiency

Mid-Multimedia Cables, Connections, Active Products

Multimedia intermediate cables, active and passive coupling product

IRENIS-PURELINK:
HDMI, DVI, Displayport excellent German quality connections.

Very wide range of products.

PACIFIC:
Since 1988, economic price, durable, long-lasting products.

HDMI, DVI, SCART, Audio / Video (Tos), RGB, F, BNC, SVHS interface cables and connectors.

Pure Install ve Ultimate series™

Purelink HDMI

which allows the highest quality multimedia cables Technology:

HDMI
DVI
DisplayPort
4K cables which can transmit

Very long distance cables

FiberX series

Purelink Fiberx

wide variety of fiber multimedia interface cable:

HDMI
DVI
DisplayPort
LC cable (Multimode)
SC cable (Multimode)

HDMI Cable

High-speed HDMI cable with Ethernet channel

Solid tinned copper inner conductor. 3 times the best protection and shielding for best signal transmission possible. 15 meter cable length connecting even 1080p resolution. HDMI extender (extender), you can provide connection up to 45 meters.

Pure Install/PureID Switching System

Purelink duvar plakaları

pureıd outlet system – provided with modules according to need. High quality modern design.

Test and Measurement

Satellite TV and a Field Strength Meter

PROMAX RANGER Eco Field Strength Meter

PROMAX RANGER Neo Lite Field Strength Meter

PROMAX RANGER Neo+ Field Strength Meter

PROMAX RANGER Neo 3 Field Strength Meter

PROMAX RANGER Neo 2 Field Strength Meter

TV Field Strength Meter and all models of the undisputed world leader in TV Analyzer PROMAX, the representative of Turkey since 1989 with the support PROTEL.

PROMAX
HD RANGER Eco

TV / SATELLITE Field Strength Meter and Analyzers
HDRangerLite_350
  • DVB-T2, DVB-S2, DVB-C2
  • All HD broadcast formats including 1080p
  • PROMAX the most economical Field Strength Meter

PROMAX
RANGER Neo Lite

HEVC-enabled TV / SATELLITE / IPTV Field Strength Meter and Analyzers

  • DVB-T2, DVB-S2, DVB-C2
  • All HD broadcast formats including 1080p

PROMAX
RANGER Neo +

HEVC-enabled TV / SATELLITE / IPTV Field Strength Meter and Analyzers
HDRangerp (1)
  • DVB-T2, DVB-S2, DVB-C2
  • All HD broadcast formats including 1080p
  • ProMax is the most sold Field Strength Meter

PROMAX RANGER Neo 2

HEVC-enabled TV / SATELLITE / IPTV Field Strength Meter and Analyzers


HDRanger2_581

  • DVB-S2, DVB-T2, DVB-C2 Tuner
  • Touchscreen (touch) screen
  • IPTV entry
  • CAM module input
  • ASI input, HDMI port, USB
  • Optical fiber LNB input, internal optical receiver
  • Remote access via WiFi
  • GPS connection for drive test
  • Built-TS analyzer
  • Transport stream (TS) recording feature

Please call us for more information.
More details about the products, how you use your technical knowledge and guidance to help you consult with appropriate experts PROTEL.
