Datwyler
  • Cat.8, Cat.7A, Cat.7, Cat.6A, Cat.6, Cat.5e ethernet cables
  • Fiber optic cables
  • Industrial cables
  • Safety, Building Security, Automation, Alarm Cables
  • Copper networks connectivity products
  • Fiber networks connectivity products
  • Industrial IT connectivity products
  • Off-shore and marine cables

Dätwyler IT Infra is part of the Dätwyler group, established in 1915 in Switzerland.

Dätwyler IT Infra enables organizations around the world to run their IT/OT infrastructure seamlessly and scale their business with ease. Being a well-established company, they operate on the market as a provider of innovative system solutions, products and services for data centers, fiber networks and intelligent buildings, as well as acting as a subcontractor or general contractor covering the entire value-added chain.

The complete product range of Dätwyler IT Infra (except the elevator cabling products) can be ordered from us in Turkey ex stock or with acceptable lead times. Re-export and drop-shipment to any country in our sales territory is also possible.

Widely used types can be ordered from our online store in required lengths according to your demand, instead of complete reels/carton boxes. We also carry the original Dätwyler and Telegärtner connectors, which are 100% compatible with Dätwyler cables.

DÄTWYLER LAN & Data Center Cables

Datwyler New Cat 8.2 Cables

Ethernet Cables

Cat. 8.2
Cat. 7A
Cat. 7
Cat. 6A
Cat. 6
Cat. 5e
S/STP, F/FTP, U/FTP, UTP
Up t0 40 Gbps speed
Installation or flexible patch
Indoor, Outdoor
AWG22,23,24,25,26,27

Cat 8.2

up to 40 Gbps speed

Electrically and mechanically superior quality Cat.8.2 data cables

High-end data cable for data centers.
Developed particularly for 40 GBase-T transmission with maximum channel length of 30 meters in End of Row or Top of Rack (EoR / ToR).
Applications in data centers.
For the transmission of digital and analogue voice, video and data signals.
Suitable for all ICT network applications up to 2000 MHz.

Cat 7A, Cat 7

up to 25 Gbps speed

39 different models of premium quality Cat.7, Cat.7A cables

For the transmission of digital and analogue voice, video and data signals.

Cat 6A, Cat 6

up to 10 Gbps speed

23 different models of premium quality Cat.6, Cat.6A cables

For the transmission of digital and analogue voice, video and data signals.

The most preferred cable type in data centers.

Cat 5e

up to 1 Gbps speed

Electrically and mechanically superior quality Cat.5e patch cord cables

As patch cord in patch panels and as equipment connection cable.

Construction optimized for fast and reliable terminations.

Applicable for Power over Ethernet (PoE) / PoE+.

DÄTWYLER Industrial Cables

Datwyler New Industrial Data Cables

Industrial Data Cables

PUR & antimicrobial clean room qualified cables

Industrial Ethernet IP67 connectivity

Wash-down outlets & enclosures

PoE+/4PPoE “Intelligent Building” cabling

IP rated cabinets and enclosures

Containerized modular data centers & disaster recovery

Fire safety cables and accessories

Industrial Ethernet

Up to 1000 MHz bandwidth

Extremely durable PUR outer jacket models, which have been tested for oil resistance.

High flexible PVC models.

Profinet Type A

Cat.7 PUR installation cable, specifically designed for flexible installation in Profinet applications in industrial automation.
The PUR outer sheath is resistant to mineral oil-based lubricants.

Cat.5e PVC cable, specifically designed for fixed installation in Profinet applications in industrial automation, with  copper shielding braid providing ideal protection against electromagnetic interference.

Profinet Type B

PVC Sensor & Actuator Cables

PUR Sensor & Actuator Cables

PUR Distribution Boxes Cables

Datwyler Single Pair Ethernet Cables

Single Pair Ethernet (SPE)

Flexible data cables with stranded conductor suitable for patch cords and equipment cords in a Single Pair Ethernet environment.
For the transmission of digital and analogue data, voice and video signals.
Suitable for IP based 2-wire bus applications with conductor wire size of AWG22 or AWG26.
Applicable for Power over Data Line (PoDL) and for 1-pair PoE.

DÄTWYLER Fiber Optic Cables

Datwyler Fiber Optic Cables up to OM5

Dätwyler Fiber Optic Cables

All Dätwyler fiber optic cables can be ordered in any desired length.

Between 100m … 8000m you can order any length, which you need, and you get it on one spool, as one piece.

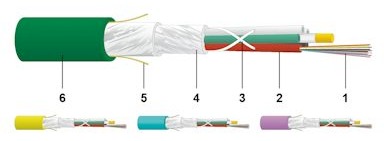

Universal Cables

Robust, non-metallic fiber optic outdoor and indoor cables with one or two central loose-tubes.

SM an MM loose-tubes can be combined within the same cable.

High crush resistance for high transmission reliability.

Easy handling due to cable construction with dry interstices.

Non-metallic rodent protection.

The two colored ripcords are easy to identify and enable the safe opening of the cable sheath.

Flame retardant halogen-free FR/LS0H sheath.

Indoor Cables

Robust, non-metallic fiber optic indoor cables with stranded loose-tubes.

Application:

LAN backbone, access and riser zone.

Data center backbone and horizontal cabling.

Connection cable between the building distributors and/or floor distributors.

Suitable for laying in dry cable trays, ducts and vertical shafts, also when accessible to rodents.

It can also be installed on very complex cable trays.

Outdoor Cables

Robust, metal-free fiber optic outdoor cables with one central loose tube.

High tensile strength and high radial load strength for the highest transmission security.

Non-metallic rodent protection. HDPE cable sheath, easy to lay.

Application:

For pulling in or blowing through thermoplastic duct systems.

Suitable for laying in cable platforms, cable shafts and even in very complex cable trays.

Direct burial.

Fiber Patch Cords

Dätwyler patch cables are suitable for all high-performance applications with parallel optic signals in a data center environment.

The round patch cables are pre-assembled with high-performance optical connectors of any kind at both ends.

They are assembled to a very high quality and guarantee optimum values for optical performance (IL/RL).

DÄTWYLER Safety, Building Security, Automation and Alarm Cables

Datwyler New Safety Cables

Safety Cables

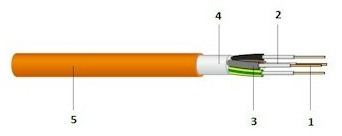

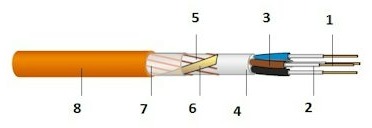

FE180 halogen-free safety cables with improved fire characteristics

Fire alarm cables

Fire alarm cables also with steel wire braiding, with intrinsic fire resistance.

Suitable for indoor applications.

Armoured cables

For permanent installation in dry, damp or wet areas, on or behind plaster work or in walls or concrete. Also suitable for outdoor applications.

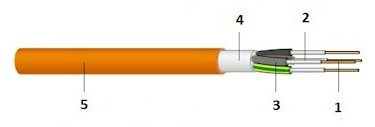

Power cables

Power cables and shielded power cables, 300/500V

Halogen-free, with improved fire characteristics,

DÄTWYLER Copper Networks Connectivity

Datwyler Cable Connectors

Cable connectors

Tool-less connectors for data cables

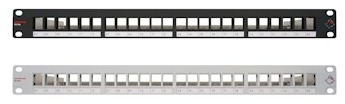

Patch panels

Loaded and unloaded patch panels

Jacks, Plugs, Adapters

RJ45 plugs, keystones. Also IP67 types.

Outlets, face plates

Flush mounted and surface mounted outlets, RJ45 keystone modules.

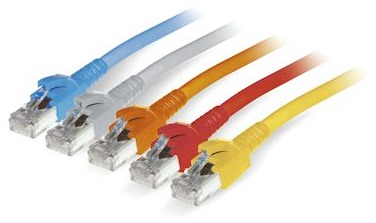

Patch cords

Cat.6A patch cords, indoor and IP67 models

DÄTWYLER Fiber Networks Connectivity

Datwyler New Fiber Optic Patch Cords

Patch cords

All connector types incl. MTP

Fanout, breakout cables

All connector types incl. MTP

Patch panels

Wide range of fixed and modular patch panels

Pigtails

OS2, OM2, OM3, OM4



Jacks, Plugs, Adapters

All connector types

DÄTWYLER Industrial IT Connectivity

Datwyler Industrial RJ45 Plugs

Industrial RJ45 plugs

Datwyler Industrial IP 67 Outlets

Industrial outlets IP67

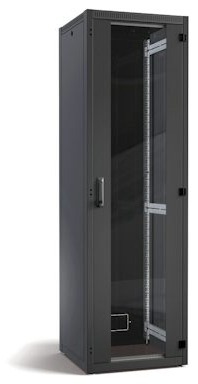

Racks and Enclosures

Industrial cable connectors

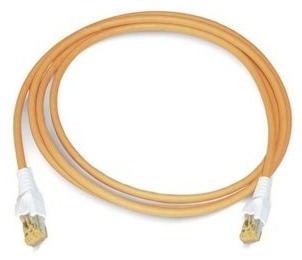

Industrial patch cords

DÄTWYLER Off-Shore and Marine Cables

Datwyler Offshore and Marine Cables

Offshore and Marine Cables

The cables are constructed to comply with IEC 60092-350 and designed for the specific environmental conditions on ships and offshore platforms. They are already listed with well-known shipbuilders in Europe. If increased oil resistance is required, Datwyler can also supply its customers with SHF2-sheathed high-speed data cables.

Consult us for more information.
Contact our experts for technical details and product selection support.
