Video Test and Measurement

DekTec Products

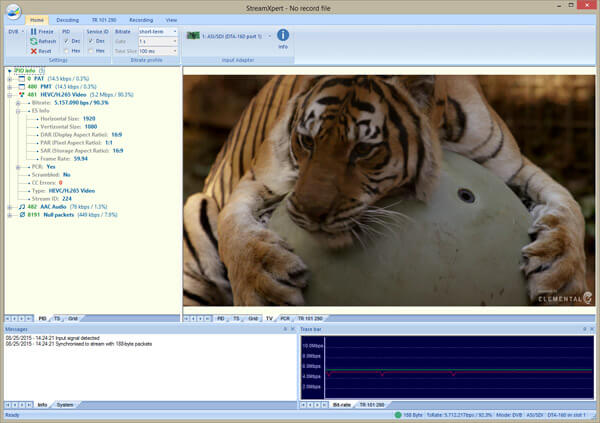

StreamXpert 2.0

Real-time transmission-flow (transport-stream) analysis software
StreamXpert

DekTec’s industry-standard MPEG-2 transport-stream analyzer.
The StreamXpert provides detailed statistics on PIDs, services and tables in real time. It analyzes and decodes audio, video and system information.

StreamXpress

Transmission-stream (TS) player software
StreamXpress

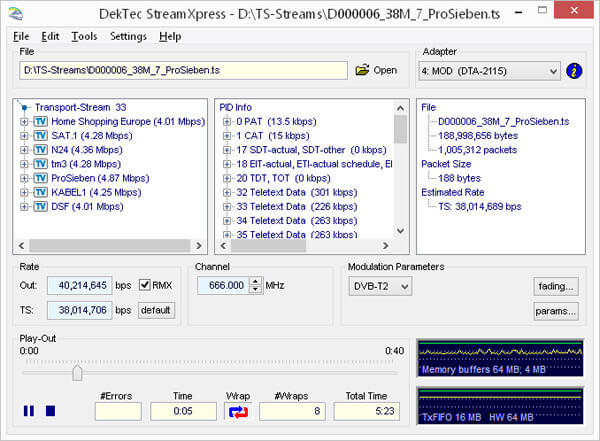

DekTec’s versatile stream player software. The StreamXpress allows you to build a low-cost, high-performance stream player using a standard- or industrial PC and a DekTec output adapter.

Xpect Mosaic

Ts 24/7 monitoring (monitoring) and mosaic screen creation software
Xpect Mosaic

Xpect Mosaic is a software package that combines 24/7 transport-stream monitoring with a fully configurable multi viewer (Mosaic) of decoded video, audio bars and monitoring status.

MuxXpert

Real-time transmission stream (TS) multiplex software
MuxXpert

DekTec’s transport-stream remultiplexer software. Runs on a standard- or industrial PC with all DekTec input and output adapters. Allows re-multiplexing of services and service components from any input to any output.

ASI/SDI Input/Output

Picture DekTec Model Type Description Input/Output
DTA-2144B DTA-2144B PCIe Quad ASI/SD-SDI input/output 4x ASI/SD-SDI in/out
DTA-2145 DTA-2145 PCIe Dual ASI/SD-SDI input+output 1x ASI/SD-SDI in/out
1x ASI/SD-SDI out

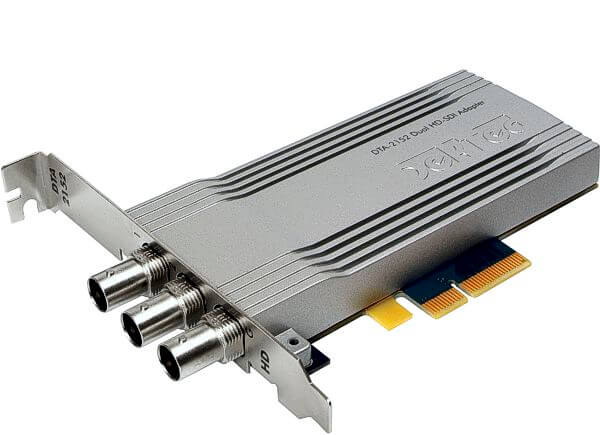

DTA-2152 DTA-2152 PCIe Dual HD-SDI/ASI input/output 2x ASI/HD-SDI in/out
1x Genlock in

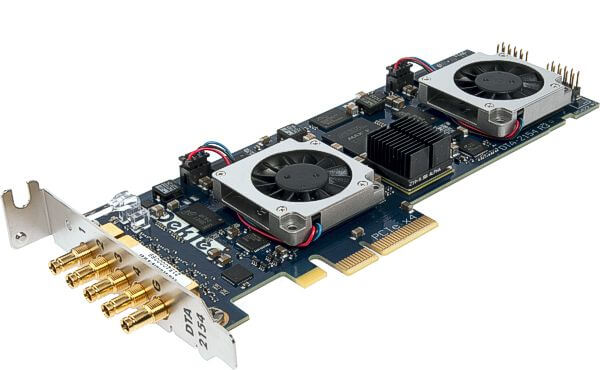

DTA-2154 DTA-2154 PCIe Quad HD-SDI/ASI input/output 4x ASI/HD-SDI in/out
1x Genlock in
DTA-2160 DTA-2160 PCIe GigE and 3x ASI/SD-SDI input/output 1x GigE port
3x ASI/SD-SDI in/out
DTA-2174 DTA-2174 PCIe Quad 3G-SDI/ASI input/output 4x ASI/3G-SDI in/out
1x Genlock in
dta-2179 DTA-2179 PCIe 12x HD-SDI/ASI input/output
(6x 3G-SDI/ASI)
12x ASI/HD-SDI (6x 3G-SDI) in/out
1x Genlock in
DTA-2180 DTA-2180 PCIe H.264 & MPEG-2 HD hardware encoder 1x HD-SDI in
1x HDMI in
1x ASI out

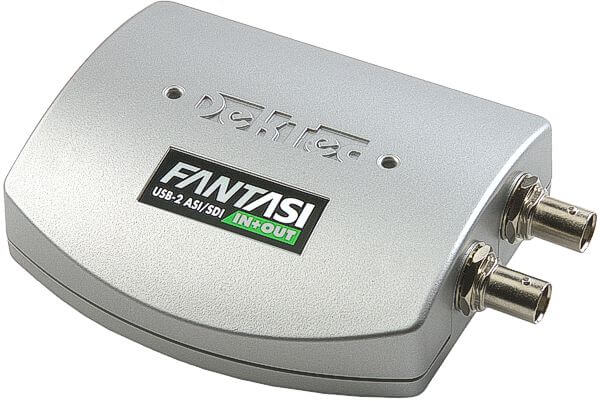

DTU-245 DTU-245 USB ASI/SD-SDI input+output 1x ASI/SD-SDI in
1x ASI/SD-SDI out

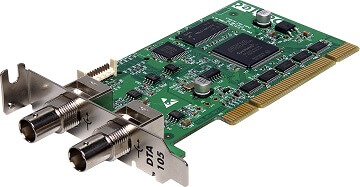

DTA-105 DTA-105 PCI Dual ASI out 2x ASI out

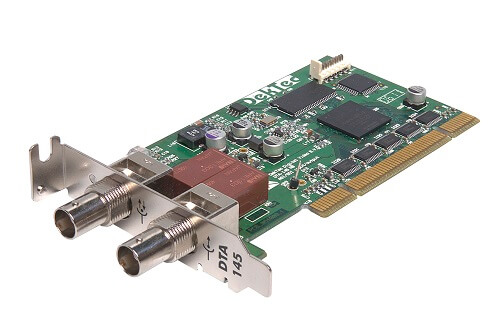

DTA-145 DTA-145 PCI ASI/SD-SDI input+output 1x ASI/SD-SDI in/out
1x ASI/SD-SDI out

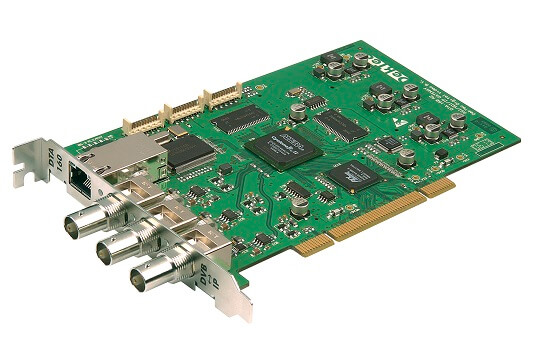

DTA-160 DTA-160 PCI GigE and 3x ASI/SD-SDI input/output 1x GigE port
3x ASI/SD-SDI in/out

click the pictures for enlarging | click the model numbers for data-sheet downloading

Modulators

View DekTec Model Type Explanation Input / Output

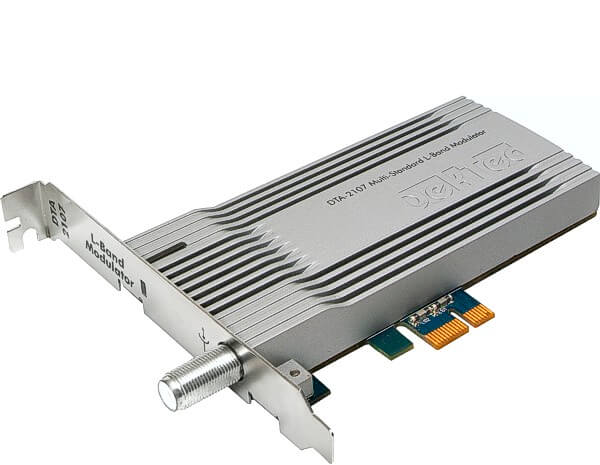

DTA-2107 DTA-2107 PCIe Multi-standard L-Band satellite modulator 1x RF out
DTA-2111 DTA-2111 PCIe Multi-standard VHF / UHF cable / terrestrial modulator 1x RF out

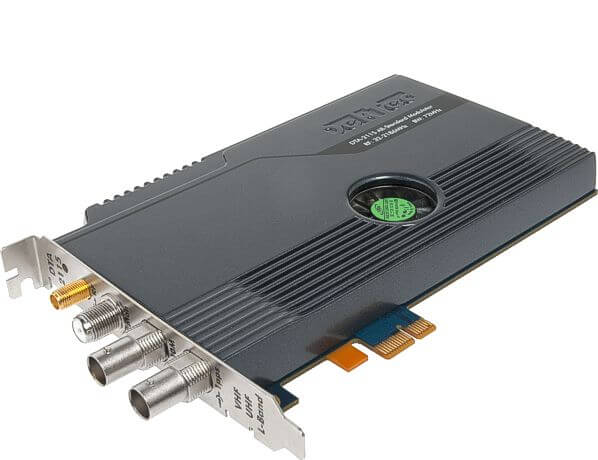

 DTA-2115B DTA-2115B PCIe All-standard VHF / UHF / L-band modulator 1x RF (SMA) out
1x RF (F) out
2x GPS clock in

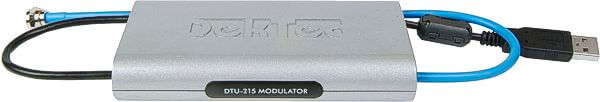

 DTU-215 DTU-215 USB Multi-standard VHF / UHF cable / terrestrial modulator, USB-2 connection 1x RF out
DTU-315 DTU-315 USB All-standard VHF / UHF / L-band modulator, USB 3 connection 1x RF out
DTA-107 DTA-107 PCI Multi-standard L-Band satellite modulator 2x RF out
DTA-115 DTA-115 PCI Multi-standard VHF / UHF cable / terrestrial modulator 2x RF out
1x ASI in/out

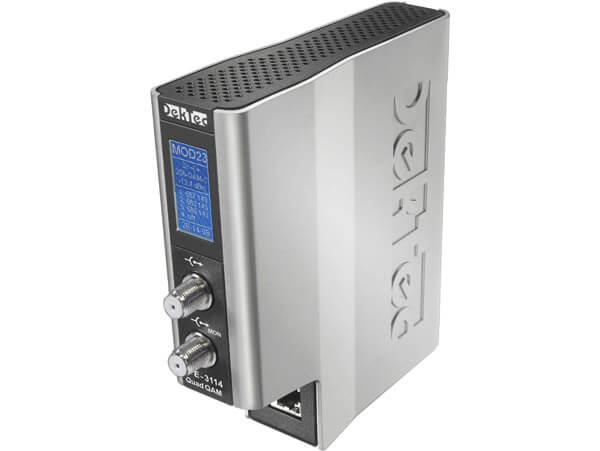

DTE 3114 DTE 3114 PoE Quad QAM modulator, the IP input 1x RJ45 port
2x RF out

Click image to enlarge | To download the brochure, please click the model number

IP Adapters and Gateways

View DekTec Model Type Explanation Input / Output
DTA-2160 DTA-2160 PCIe GigE ve 3x ASI/SD-SDI input/output 1x GigE port
3x ASI/SD-SDI in/out
DTA-160 DTA-160 PCI GigE ve 3x ASI/SD-SDI input/output 1x GigE port
3x ASI/SD-SDI in/out

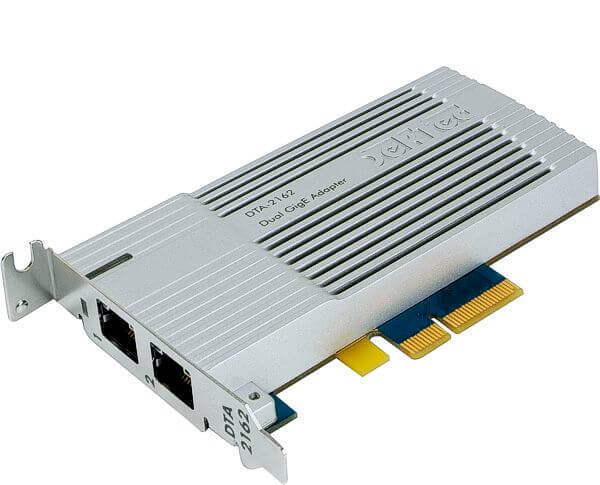

DTA-2162 DTA-2162 PCIe Advanced dual-port GigE network card 2x GigE port
DTE 3100 DTE 3100 PoE IP-ASI converter that can operate independently 1x RJ45 port
2x ASI out
DTE 3114 DTE 3114 PoE Quad QAM modulator, the IP input 1x RJ45 port
2x RF out
DTE 3120 DTE 3120 PoE ASI-IP converter can operate independently 1x RJ45 port
1x ASI in
1x ASI out

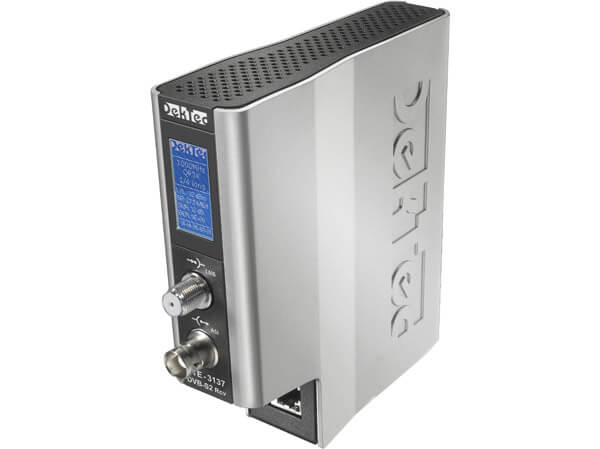

DTE 3137 DTE 3137 PoE DVB-S2 to IP and ASI gateway 1x RF in
1x RJ45 port
1x ASI out

Click image to enlarge | To download the brochure, please click the model number

DVB Receiver, DVB Probes

 View DekTec Model Type Explanation Input / Output
DTA-2131 DTA-2131 PCIe Multi-standard VHF / UHF SDR receiver 1x RF in
DTA-2136 DTA-2136 PCIe Dual VHF / UHF QAM A / B / C receiver 2 x RF in
2x ASI out

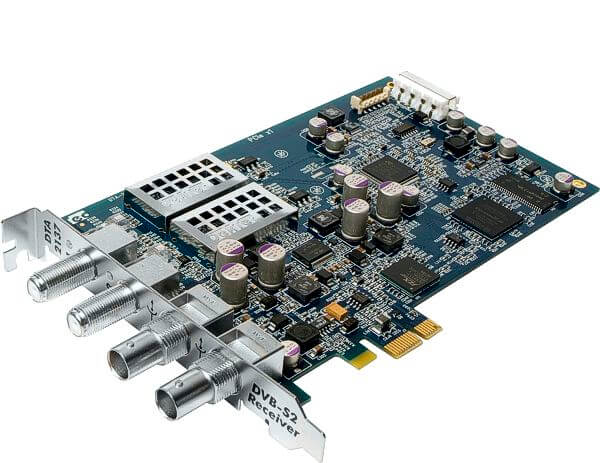

DTA-2137C DTA-2137C PCIe L-Band Dual DVB-S2 satellite receiver 2x RF in
2x ASI out

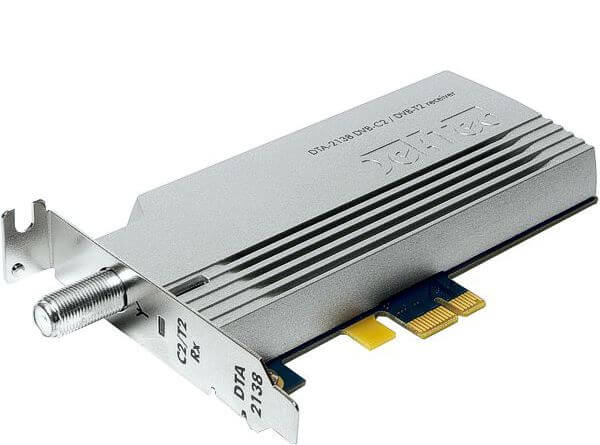

DTA-2138B DTA-2138B PCIe DVB-T2, DVB-C2, ISDB-T receiver 1x RF in

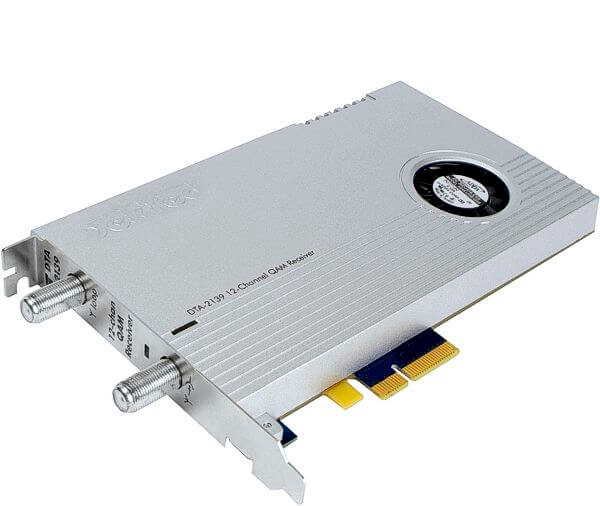

DTA-2139 DTA-2139 PCIe 12-channel VHF / UHF QAM receiver 1x RF in
1x RF out
DTE 3137 DTE 3137 PoE DVB-S2 to IP and ASI gateway 1x RF in
1x RJ45 port
1x ASI out

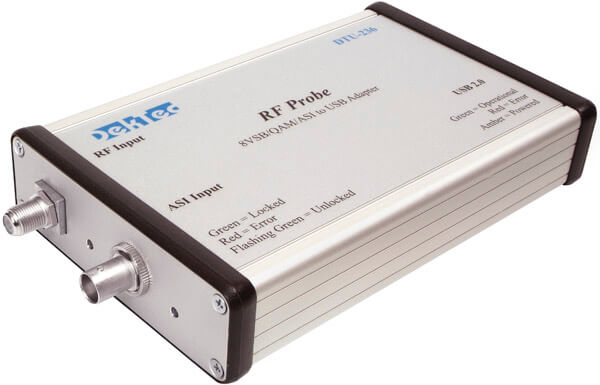

DTU-236A DTU-236A USB 8VSB / QAM and ASI probe for analysis 1x RF in
1x ASI in

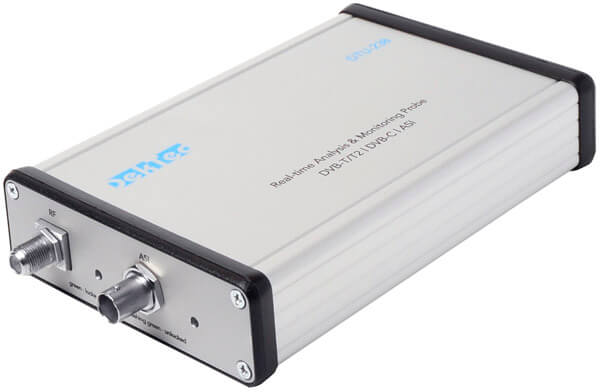

DTU-238 DTU-238 USB DVB-T2 / T / C, ISDB-T and AS probe 1x RF in
1x ASI in

Click image to enlarge | To download the brochure, please click the model number

Software

View DekTec Model Type Explanation
SX StreamXpert 2.0 SW Real-time transport-stream analysis software
sp StreamXpress SW dektec stream player software
 Xpect Xpect Mosaic SW 7/24 transport stream monitoring and video mosaic creation software
Mx MuxXpert SW Real-time transport-stream multiplexer software

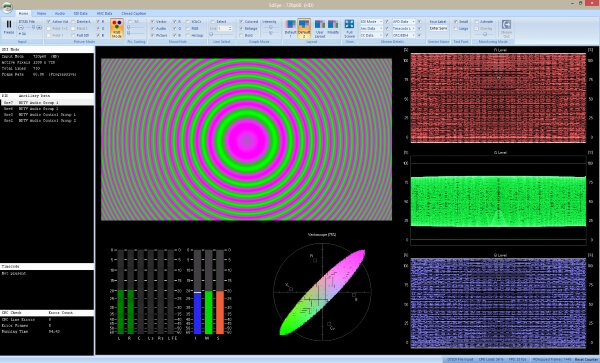

SDI SdEye SW Real-time SDI Waveform Monitor software. SD / HD / 3G-SDI Analysis and Monitoring.
By Qualify SW AVC / MP2 Elementary Stream and Video Quality Analysis software

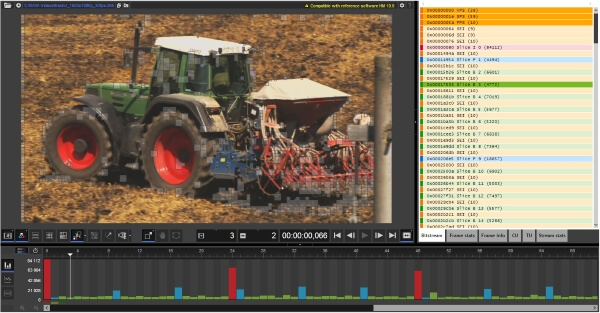

Zond HEVC Analyzer SW HEVC (H.265) video analysis software offline

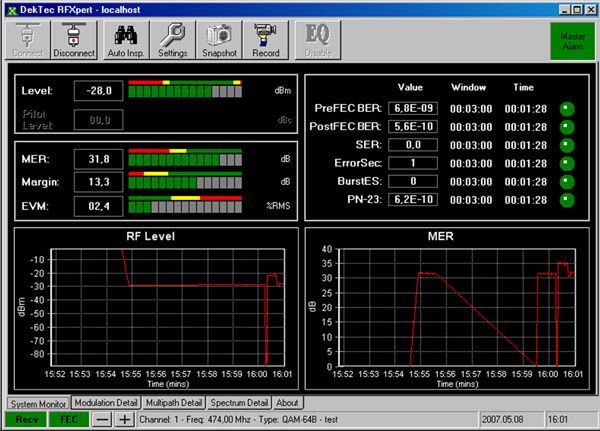

RFx RFXpert SW RF monitoring and analysis software

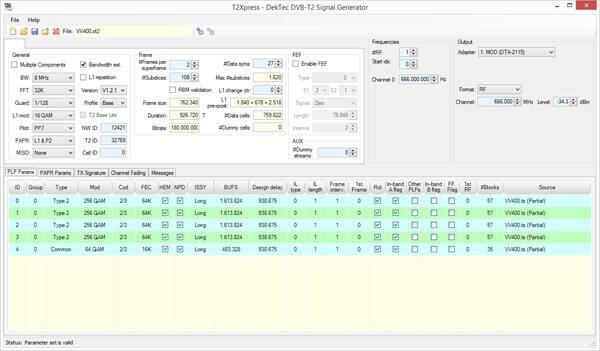

T2X T2Xpress SW DVB-T2 signal processing software
tMM TmmXpress Sw ISDB-Tmm signal generation software
VF Rec SW Advanced transport-stream / SD recording (recorder)

Click image to enlarge | To download the brochure, please click the model number

Semi-finished modules for Manufacturers

 View DekTec Model Type Explanation Input / Output

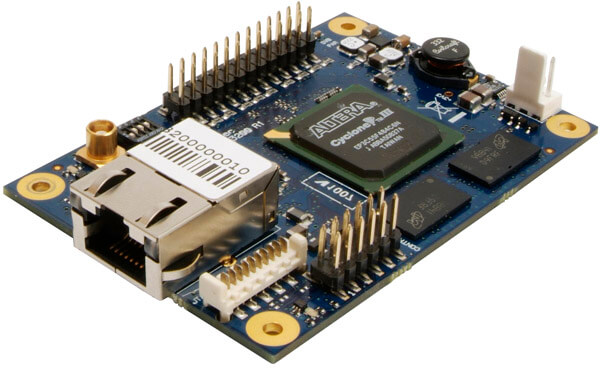

DTM-3200 DTM-3200 OEM IP to OEM conversion module from ASI and IP to ASI 1x RJ45 port
1x ASI in/out
1x Parallel in/out

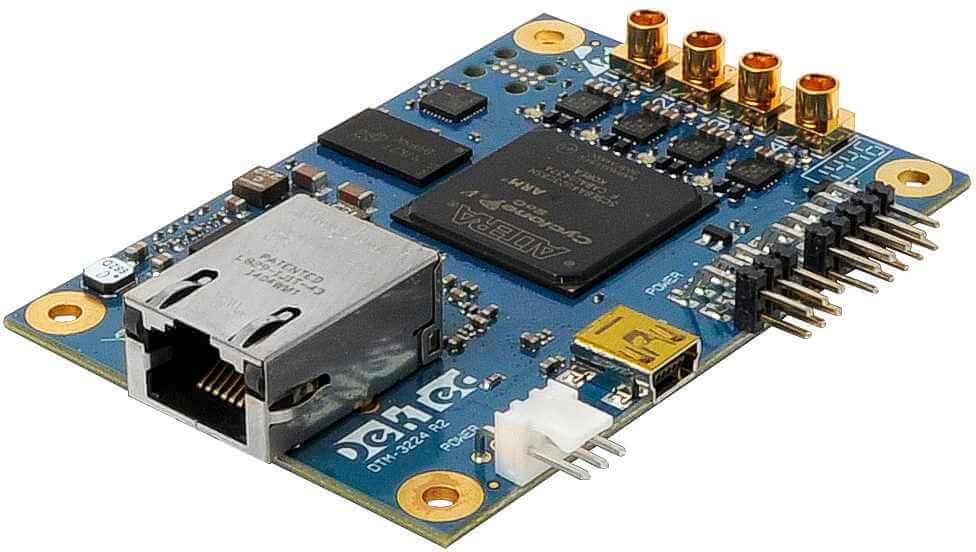

dtm3224 DTM-3224 OEM IP to OEM conversion module of four vaccines 4x ASI in
1x RJ45 port

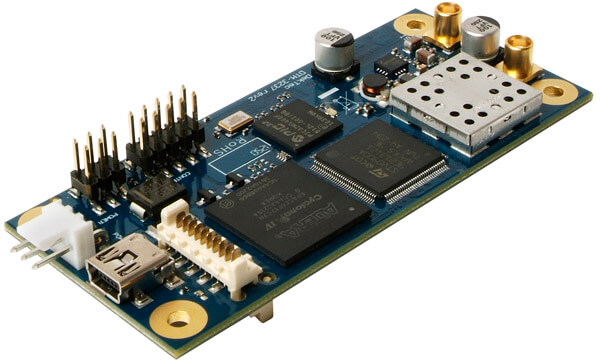

DTM-3237 DTM-3237 OEM ASI output of DVB-S2 satellite receiver OEM module 1x RF in
1x ASI out

Click image to enlarge | To download the brochure, please click the model number

Promax Products

This TV signal generators,  producing YPbPr signals  , including the possibility has the widest range of options for this type of device function. Multistandard and multisystem, 37 different patterns, 16: 9 and 3: 4 format, VITS & WSS, teletext, VPS and PDC. Messages imaging facilities (time, text). All common interface connectors such as S-VHS or SCART are available;
RS-232 interface, is particularly useful for bi-directional exchange of data and control the device. With the gradual attenuation of 1 dB increments until the output level 80 dbmv’y. Adjustment and verification lines, production studios, industrial applications, research centers, and so on. Specifically mentioned as being necessary for applications such as high quality signal.

FEATURES:

multistandart PAL / PAL60 / SECAM / NTSC
CONFIGURATIONS 32 memories
MODULATION
  • Vestigial Side Band (GV-898 +)
  • Double Side Band (GV-798 +)
 PAL / NTSC / SECAM TV Pattern Generators GV-798 + and GV-898 + user manual (Spanish, English, French)
 PAL / NTSC / SECAM TV Pattern Generators GV-798 + and GV-898 + user manual (Spanish, English, French)

TG-140  is a very versatile  , MPEG-2,  one embodiment of a plurality of available transport stream recording and player. A transport stream continuously for several hours (20 Mbps  up to 15 hours)  can save and later re-play amusement. Recording capacity can be divided in the shorter transport stream.

FEATURES:

ENTRIES
  • ASI transport stream
  • The maximum data rate of 150 Mbps
OUTCOMES
  • ASI transport stream
  • SPI parallel transport stream
  • The maximum data rate of 90 Mbps
STORAGE CAPACITY
  • Hard disk 160 GB
  • 15 hours at 20 Mb / s transport stream
PC CONNECTION
  • USB interface
  • Ethernet interface
 TS recorder and player processor TG-140 user manual (Spanish, English) (2.22 MB)
 TS recorder and player processor for quick reference guide (Spanish, English) TG-140 (269 KB)

TS Analyzer  ,  a deep analysis of the DVB digital television MPEG-2 transport stream  is a free software that allows you.

Ts or a file format .MPG TS Analyzer installs it in a tree structure in the transport stream and PSI / SI tables with displays. Specific information, PAT, PMT, NIT, BAT, SDT, EIT by DVB and MPEG-2 standards, such as are illustrated in the mandatory table.

TS Analyzer  PID use of graphics, video bitrate, audio bitrate, etc., shows
the TS Analyzer  Windows PC for software specifically … software development, for example in equipment and systems testing, TR 101 290 rules are designed to determine the appropriate DVB transmission errors and also for learning purposes, where this can be a useful tool understands how the digital television system works.

FEATURES:

PSI-SI INFORMATION It was structured in a tree chart for each service
PCB PCR absolute value table for each service
Bitrates AUDIO / VIDEO All ts for each service or audio / video bit rate chart
OTHERS
  • TR 101 290 errors
  • dissemination of information about the PID
COMPATIBILITY
  • TS files captured by the meter or TS recording equipment PROMAX field strength
  • DVB, ISDB-T and ATSC systems
REQUIREMENTS Microsoft Windows XP (SP3), Vista, 7, 8 and 10 are designed to
 Free transport stream analyzer (1.06 MB)

Please call us for more information.
More details about the products, how you use your technical knowledge and guidance to help you consult with appropriate experts PROTEL.
