DC Power Supplies

FA-853 product are new high-performance programmable linear DC power supplies. It includes up to 100 output groups with configurable timer, high-resolution LCD display, extremely clean ripple and noise, comprehensive over-voltage over-current over-temperature protection, user friendly interface and panel layout, and variety standard interfaces to meet diverse test requirements.

  • Dual Independent and Separate Control Outputs
  • Fixed 5 V / 3 A output
  • Low ripples noise: ≤ 300 μVrms / 2 mVpp
  • Four operating mode: independent, parallel connection, series connection, plus-minus
  • Interface: USB 2.0, RS232
  • Control software included

Specıfıcatıons:

INDEPENDENT OUTPUT 2×30 V, 2×3 A
PARALLEL OUTPUT 1×30 V, 6 A
SERIES OUTPUT 1×60 V, 3 A
PLUS-MINUS OUTPUT 2x±30 V, 2x±3 A
FIXED OUTPUT 5 V, 3 A
RESOLUTION
  • Voltage: 1 mV
  • Current: 1 mA
DISPLAY Color 3.9” TFT-LCD screen, 480 x 320 pixels

Downloads:

 Quick reference guide (Spanish) for power supply FA-853 (789 KB)
 Quick reference guide for power supply FA-853 (788 KB)
 User manual for power supply FA-853 (2,45 MB)
 User manual (Spanish) for power supply FA-853 (2,52 MB)
 Software DSWave (32,01 MB)

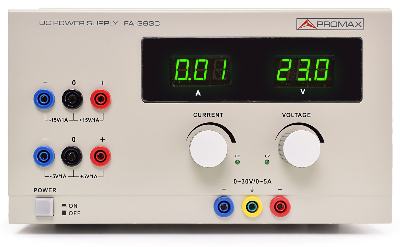

The FA-363C power supply provides a variable output voltage between 0 and 30 V and current up to 5 A. All outputs are totally protected against short-circuits at any control setting, since the maximal current that can provide is internally adjusted.
The 30 V / 5 A multi-output DC power supply has two digital displays that allow the user to read simultaneously current and voltage. In this power supply, two fixed and one adjustable voltage are available, in order to avoid using several power supplies to design and repair electronic equipment.

The value of the fixed voltages has been chosen to supply either digital logic or analogue circuits at the same time. Therefore, this application is especially suitable for laboratories, repair and maintenance shops as well as for electronic and telecommunications educational centres.

Specıfıcatıons:

VARIABLE OUTPUT
Voltage From 0 to 30 V
Current From 0 to 5A
FIXED OUTPUTS
Output 1 ±15 V, 1 A
Output 2 ±5 V, 1 A
DISPLAY ACCURACY
Voltage ±(0.2% reading + 2 digits)
Current ±(1.0% reading + 2 digits)

Downloads:

 User manual (Spanish) for power supply FA-363 C (136 KB)

These power supplies possesses the major advantages given by the use of linear and commutation technology. Output characteristics equal to those found in linear devices are obtained.

Specıfıcatıons:

FA-376 30 V / 5 A aux 5 V
FA-662B 30 V / 1 A aux 5 V
FA-665 30 V / 5 A aux 5 V

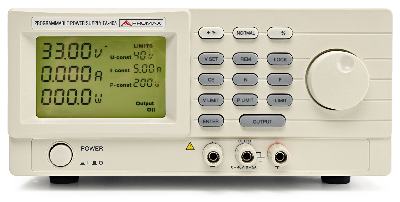

The FA-405 is a 200 W Power Supply that provides a continuous output. It is adjustable from 0 to 40 V and from 0 to 5 A. The power supply has over-voltage, over-current, overpower and over-temperature protections, what provide a safety work environment for users. A special button allows blocking controls for greater safety and it prevents settings from unintentional changes. The incorporation of a rotary knob as well as the buttons to program incremental changes (in percentage) provide a way of use really easy, which is uncommon in programmable power supplies. The control of the power supply is totally digital. It has a RS-232C interface for remote programming by means of a PC.

Specıfıcatıons:

DC VOLTAGE OUTPUT 0 to 40 V
CURRENT OUTPUT 0 to 5 A
VOLTAGE REGULATION
  • ≤ 10 mV (load)
  • ≤ 0,05% (line)
CURRENT REGULATION
  • ≤ 5 mA (load)
  • ≤ 0,05% (line)

Downloads:

 2-Languages User manual (Spanish, English) for power supply FA-405 (2,13 MB)

Please call us for more information.
