Test and measurement · PROMAX
RF and LF Signal Generators
PROMAX signal generators: function and arbitrary waveform generators, RF signal generators up to 4.4 GHz, test signal generators for TV distribution and RF wattmeters.
- Arbitrary waveform
- RF: 150 kHz – 4.4 GHz
- RF wattmeter
Tell us what you need; we will help you choose the right PROMAX model.
Request a quote by model name Help me choose the right instrument
Function and arbitrary waveform generators (LF)
On the low-frequency side PROMAX currently offers three models.
| Model | Image | Type | Frequency | Features | Document |
|---|---|---|---|---|---|

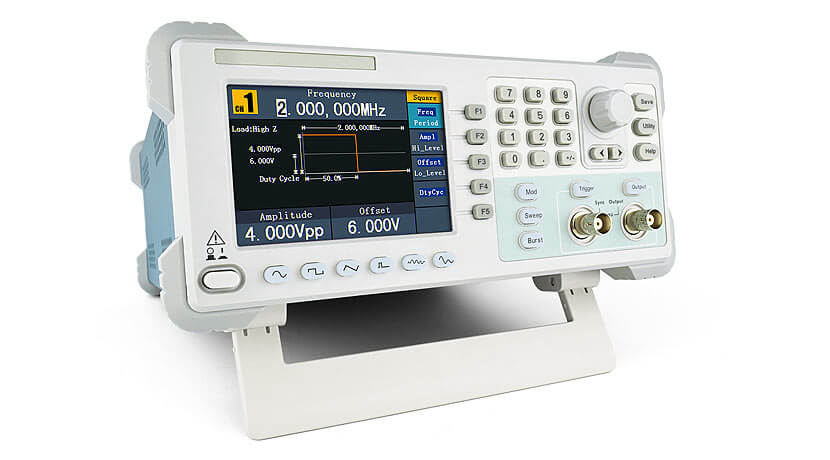

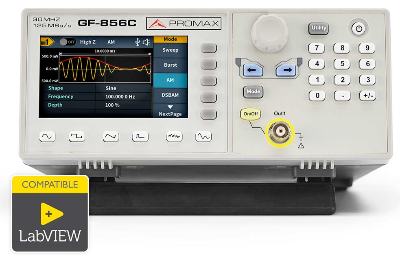

| GF-856C |  |
Arbitrary waveform generator, single channel | 30 MHz, 125 MS/s | Waveforms are created on a PC and uploaded over USB; LabVIEW compatible | GF-856 PDF |
| GF-858C | |
Arbitrary waveform generator, two channels | 30 MHz, 125 MS/s | Waveforms are created on a PC and uploaded over USB; LabVIEW compatible | GF-858 PDF |

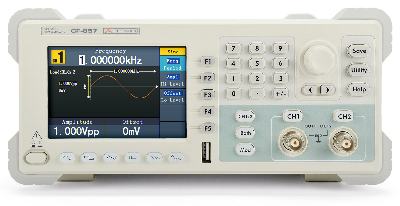

| GF-857B |  |
DDS arbitrary waveform generator | 10 MHz, 125 MS/s | Built-in frequency meter; AM, FM, PM and FSK modulation, sweep and burst; USB and RS-232 | – |
RF signal generators
| Model | Image | Type | Frequency | Features | Document |
|---|---|---|---|---|---|

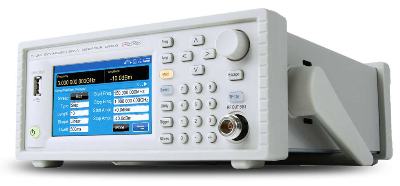

| GR-206 |  |
RF signal generator | 150 kHz – 3 GHz | Remote control, external trigger input, user-defined waveforms | – |

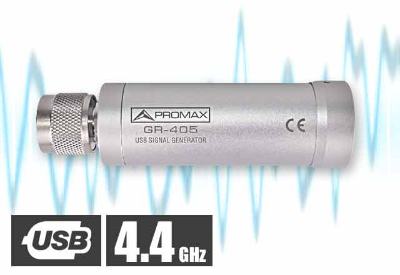

| GR-405 |  |
RF signal generator | 35 MHz – 4400 MHz | Powered and controlled from a PC over USB | GR-405 PDF |
Test signal generators for TV distribution systems
| Model | Type | Use |
|---|---|---|
| RP-050 | IF and UHF signal generator | Checking satellite receivers and coaxial installations in buildings |
| RP-080 | Test signal generator | Generates up to four independent pilot carriers with selectable level |
| RP-110 | Test signal generator for coaxial cable | Certifying coaxial cabling in the CATV and SMATV bands |
These generators are used together with field strength meters: TV, cable and satellite spectrum analyzers.
RF power measurement and radiocommunication analysis
| Model | Image | Type | Frequency | Features | Document |
|---|---|---|---|---|---|

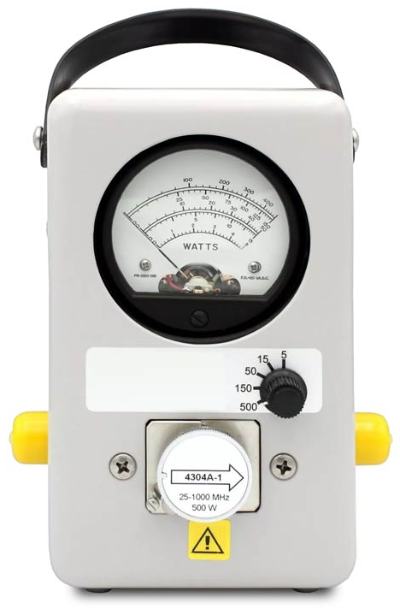

| IC-002B |  |
Multi-range RF wattmeter | Up to 1 GHz, 500 W | Portable; CW, AM, FM and TV modulations; five measurement scales | – |

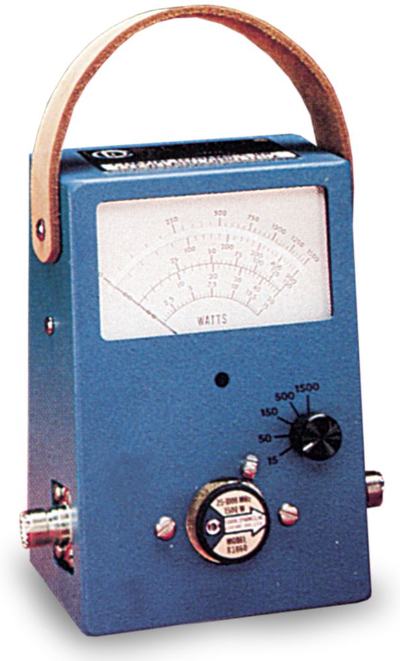

| IC-002 |  |
Multi-range RF wattmeter | – | Portable RF power meter | – |

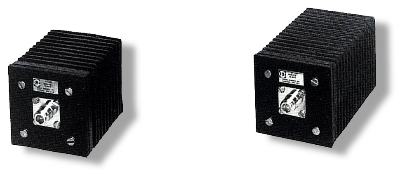

| IC-501, IC-502 |  |
Artificial loads | – | Two artificial loads with coaxial input | – |

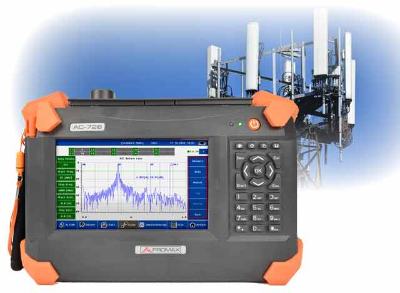

| AC-726 |  |
Radiocommunication analyser | – | For 2G, 3G, 4G and WiMAX systems; DTF return loss, DTF-VSWR and cable loss analysis; cable and antenna connection checks | – |
About PROMAX
- Manufacturer. PROMAX is a Spanish manufacturer of test and measurement instruments founded in 1963.
- Documents. The datasheet and user manual of every model are published on the manufacturer’s site.
- Range. Besides laboratory instruments it makes field strength meters, fibre optic test equipment and digital TV products.
Why PROTEL?
- General distributor. PROTEL has been PROMAX’s general distributor in Turkey since 1989.
- Selection support. Tell us your application; we recommend a model and explain why.
- One supplier. PROMAX measurement and laboratory instruments in one quotation.
- Online ordering. Some models can be ordered at proteldepo.com.
Frequently asked questions about signal generators
What is the difference between a function generator and an arbitrary waveform generator?
A function generator produces standard waveforms such as sine, square and triangle. An arbitrary generator also produces waveforms defined by the user.
Where is an RF signal generator used?
As a signal source of known frequency and level for testing receivers, filters, amplifiers and antenna systems.
What if the PROMAX model I need is not on this page?
Send us the model name; we quote the PROMAX products in our sales programme.
Request a quote
- If you know the model: the model name, quantity and delivery country are enough.
- If you do not: tell us your application and the values you need; we recommend the model.
- If you have a specification: send it and we will name the matching PROMAX model.
Technical documents
- PROMAX function generators (promaxelectronics.com)
- PROMAX RF equipment (promaxelectronics.com)
- PROMAX GR-104 (PDF, earlier version)
- PROMAX GR-405 (PDF, earlier version)
- PROMAX GF-856 (PDF, earlier version)
- PROMAX GF-858 (PDF, earlier version)
- PROMAX GF-23x (PDF, earlier version)
- PROMAX GF-232B (PDF, earlier version)
- PROMAX GF-855 (PDF, earlier version)

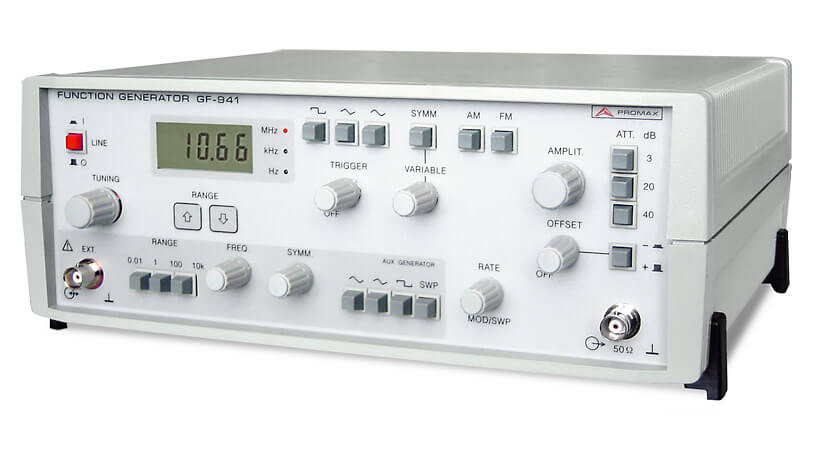

- PROMAX GF-941 (PDF, earlier version)
- PROMAX GB-212 (PDF, earlier version)
Product images and product information belong to PROMAX Test & Measurement, S.L.U. and are taken from the manufacturer’s publications; the manufacturer’s current datasheet is binding. Source: promaxelectronics.com
