SMATV, Satellite TV, Cable TV
BLANKOM modulators for SMATV, cable TV and satellite systems: DVB-C / DVB-T modulators with HDMI and SDI inputs, Edge QAM and DVB-T modulators with IP input and a DVB-S/S2/S2X modulator; 7 products.
- DVB-C · DVB-T
- HDMI · SDI · IP
- Edge QAM
- DVB-S2X
- Project quotations
- Selection support
Tell us your sources (HDMI, SDI, IP, ASI), the number of channels and the output standard you need (DVB-C, DVB-T, DVB-S2); we will suggest the matching modulator. We ship worldwide from our warehouses in Germany and Turkey.
Which modulator fits your project?
| Source | Matching model |
|---|---|
| 4 or 8 HDMI sources; DVB-C or DVB-T output | HDM-9500 |
| 8, 16 or 24 HDMI sources; DVB-C, DVB-T, ISDB-T, ATSC output | HDM-9400 |
| 8 or 12 HD-SDI sources, low latency | HDM-12220 |
| Turning IP streams into DVB-C (QAM) carriers | HDC-5004 (4), HDC-5016 / 32 / 48 / 64 (16…64) |
| Turning IP streams into DVB-T carriers | HDC-5008T |
| DVB-S/S2/S2X from ASI input, satellite uplink | HDS-8440 |
Modulators with HDMI and SDI inputs
They combine encoder, multiplexer and modulator in one unit and add local sources to the SMATV and cable TV network as channels.
| Image | Model | Features | Quote |
|---|---|---|---|
 |
BLANKOM HDM-9500 DVB modulator with 4–8 HDMI inputs |
4 / 8 HDMI inputs. DVB-C or DVB-T RF output alternatives. Encoder, multiplexer and modulator in one. 64 / 128 SPTS IP inputs. Text and logo insertion. | Request a quote |
|
BLANKOM HDM-9400 DVB modulator with 8–16–24 HDMI inputs |
8 / 16 / 24 HDMI inputs. DVB-C, DVB-T, ISDB-T, ATSC RF output alternatives. 12 (16) DVB-C or 8 (12) DVB-T carrier outputs. Multiplexer. 1 ASI input; 1 USB player input for remux. 128 SPTS IP inputs. Text and logo insertion. | Request a quote |
 |

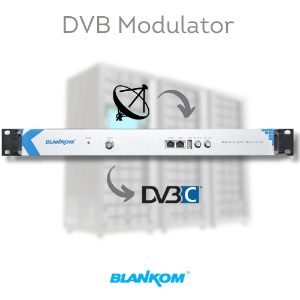

BLANKOM HDM-12220 Low-latency modulator with 8–12 SDI inputs |
12 or 8 HD-SDI inputs. 16 DVB-C carriers (8 DVB-T/ATSC, 6 ISDB-T carriers). Multiplexer. 1 ASI output. 1 RF input (DVB-C or ATSC tuner). IPTV inputs and outputs. | Request a quote |
Modulators with IP input: Edge QAM and IP to DVB-T
| Image | Model | Features | Quote |
|---|---|---|---|
 |

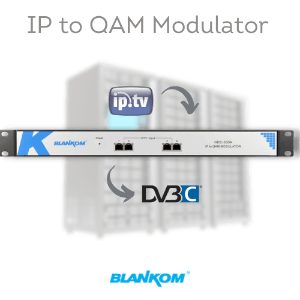

BLANKOM HDC-5004 IP to QAM modulator (Edge QAM) |
512 IPTV inputs. Multiplexer. 4 DVB-C (QAM) outputs. 4 IPTV MPTS outputs. For IPTV and DVB-C hybrid distribution networks. | Request a quote |
 |

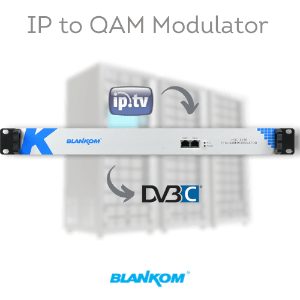

BLANKOM HDC-5016 / 32 / 48 / 64 IP to QAM modulator (Edge QAM), 16–64 carriers |
1024 IPTV inputs (SPTS or MPTS). Internal multiplexer. 16…64 DVB-C (QAM) RF carriers out. 16…64 IPTV MPTS outputs. For CATV operators. | Request a quote |
 |

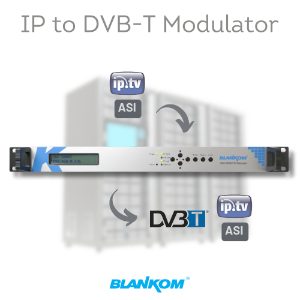

BLANKOM HDC-5008T IP to DVB-T (COFDM) modulator |
8-in-1 DVB-T modulator. Up to 512 IP inputs over UDP/RTP and 6 ASI inputs. 8 non-adjacent DVB-T carrier outputs (50–960 MHz). Simultaneous IP (MPTS) and ASI output as a mirror of the carriers. | Request a quote |
DVB-S/S2/S2X modulator
| Image | Model | Features | Quote |
|---|---|---|---|
 |
BLANKOM HDS-8440 DVB-S/S2/S2X modulator |
4 ASI inputs. DVB-S/S2/S2X output. SAT-IF (L-band) output. BISS encryption. For satellite uplinks and satellite receiver test transmitters. | Request a quote |
QAM headend with satellite input and fiber distribution
Why BLANKOM?
- In one unit. Encoder, multiplexer and modulator combined on the models with HDMI and SDI inputs.
- Many carriers. Up to 64 QAM carriers on the Edge QAM models.
- Hybrid networks. The modulators with IP input bring IPTV and cable TV networks together.
- Different standards. Models with DVB-C, DVB-T, ISDB-T, ATSC and DVB-S/S2/S2X output.
Why PROTEL?
- Distributor. BLANKOM products and technical support directly from PROTEL.
- Complete system. Headend, encoder, IPTV server, set-top box and cabling come from the same supplier.
- Selection support. We work out the model with you from transponder count, encryption and destination.
- Worldwide supply. Shipped from our warehouses in Germany and Turkey.
Frequently asked questions about modulators
What is the difference between a modulator and a transmodulator?
A modulator turns a source arriving as HDMI, SDI, ASI or IP into a DVB carrier. A transmodulator converts the DVB-S/S2 carrier from the satellite directly to DVB-C.
What is Edge QAM?
A modulator that multiplexes SPTS or MPTS streams arriving over IP and delivers them as DVB-C (QAM) carriers; it joins an IPTV backbone to cable TV distribution. The HDC-5004 delivers 4 carriers, the HDC-5016 / 32 / 48 / 64 series from 16 to 64.
How do I add a camera or information channel to an SMATV system?
Connect the source with HDMI output to the HDM-9500 or HDM-9400; the device encodes the signal and delivers it to the network as a DVB-C or DVB-T channel.
I do not know the model code. How do I get a quotation?
Send the number of transponders and channels, whether any services are encrypted and the destination of the streams; we will suggest the model.
Request a quote
- If you know the model: model code, quantity and delivery location are enough.
- If you do not: send the number of satellites and transponders, the number of channels, any encrypted services and the destination of the streams (LAN, internet).
- If you have a specification or project drawing: send it and we will work out the matching models.
