IPTV products
IPTV Headend Units
BLANKOM IPTV headend units: DVB to IP gateways with 8, 16 and 24 tuners that turn satellite services into IP streams, ASI to IP gateways, and an IP to IP transcoder and protocol converter for delivery over the internet.
- DVB-S/S2/S2X
- 8 · 16 · 24 tuners
- SPTS · MPTS
- UDP · RTP · SRT
- Project quotations
- Selection support
Tell us which services you receive (satellites, transponders and number of channels), whether any are encrypted and where the streams go (LAN, internet); we will suggest the matching unit. We ship worldwide from our warehouses in Germany and Turkey.
Which unit fits your project?
Local IPTV headend (DVB to IP gateway): receives television services from satellite and converts them to IP without changing bit rate or format. On IPTV systems running over a local network (LAN) without bandwidth limits it is used on its own.
Internet TV headend: for IPTV delivered over the internet, where bandwidth is limited, a transcoder is added to the gateway; it changes the format, bit rate and encoding of the services as required.
| Requirement | Matching model |
|---|---|
| 8 satellite transponders, wide protocol choice including SRT, HLS and RTMP | IGS-8008 |
| Decryption of encrypted services with CI modules | IGS-700/84 |
| 16 satellite transponders, SPTS or MPTS output | IGS-900 |
| 24 satellite transponders, SPTS or MPTS output | IGS-924 |
| SPTS-based IPTV that needs the programme guide (EPG/EIT) and Dynamic PMT | IGS-900A (16 tuners), IGS-924A (24 tuners) |
| Bidirectional conversion and multiplexing between ASI and IP | IGA-4400 |
| Decoding an IP or ASI stream to HD-SDI | IGS-2000 / IGS-4000 / IGS-6000 |
| Changing format and bit rate for delivery over the internet | BTR-6000V |
| Stream protocol conversion (for example between UDP and SRT) | BIG-1050X / BIG-1100X |
DVB to IP gateways: the local IPTV headend
19-inch units with satellite input and IP output that turn satellite services into IPTV streams. Detailed specifications are on the product page linked from each model.
| Image | Model | Inputs | Outputs | Features | Quote |
|---|---|---|---|---|---|
 |

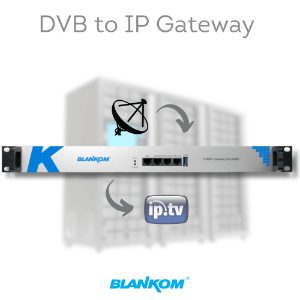

BLANKOM IGS-8008 DVB to IP streaming gateway, 8 tuners |
8 DVB-S/S2/S2X satellite tuner inputs. IGS-8008C: DVB-C/T/T2/ISDB-Tb hardware variant. ATSC multi-tuner option on enquiry. | Up to 64 SPTS (protocol-dependent). Gigabit Ethernet. UDP / RTP / RTSP / RTMP / HLS / HTTP / SRT. 100–400 Mbps processing (configuration-dependent). | Dynamic PMT support. EIT demultiplexing and carriage with selected SPTS. BISS Mode 1 / Mode E; no CI/CAM slots. PID processing; T2 multistream via satellite. HTTPS web NMS; web update and remote reboot. | Request a quote |
 |

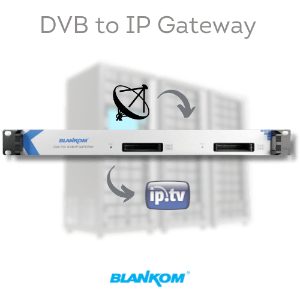

BLANKOM IGS-700/84 DVB to IP gateway, 8 tuners, 4 CI |
4 (8) DVB-S/S2/S2X tuner inputs (DVB-C/T, ISDB-T, ATSC optional). 2×1 ASI and IP stream (UDP) inputs. | IP output (32 SPTS, 2 MPTS) as UDP or RTP. 2 independent ASI outputs for remux or tuner/IP pass-through. | 2×2 CI slots for multi-service decryption of RF/ASI/IP. Embedded BISS / BISS-E decryption. | Request a quote |
 |

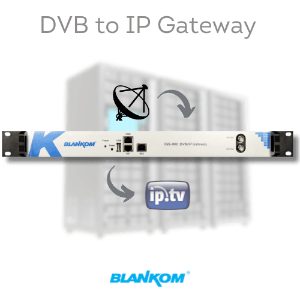

BLANKOM IGS-900 DVB to IP gateway, 16 tuners, standard model |
16 DVB-S/S2/S2X tuners. 2 ASI inputs. USB TS playback. Reception variants: IGS-900C (DVB-C/T/T2/ISDB-T) and IGS-900S (ATSC). | Selectable SPTS or MPTS. UDP / RTP / RTSP; unicast / multicast. 2 ASI outputs. | FTA reception and embedded BISS descrambling; no CI/CAM slots. Web NMS. 19-inch 1U; single PSU standard, redundant PSU optional. | Request a quote |
|
BLANKOM IGS-900A DVB to IP gateway, 16 tuners, advanced IPTV model (Dynamic PMT, EPG/EIT) |
16 DVB-S/S2/S2X tuners. 2 ASI inputs. USB TS playback and recording. | Up to 128 SPTS in total (64 each on DATA1 and DATA2). No MPTS IP output. Up to 850 Mbps per DATA port. UDP / RTP / RTSP; unicast / multicast. | Model specialised for SPTS-based IPTV. Dynamic PMT support. Demultiplexes EIT data and inserts it into selected SPTS streams, supporting programme guides (EPG) in compatible receivers and middleware. AIT carriage. USB TS recording and playback. BISS Mode 1 / Mode E descrambling; no CI/CAM slots. | Request a quote |
|

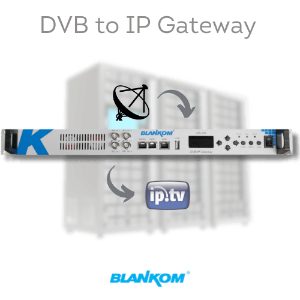

BLANKOM IGS-924 DVB to IP gateway, 24 tuners, standard model |
24 DVB-S/S2/S2X tuners. 2 ASI inputs. USB TS playback. Reception variants: IGS-924C (DVB-C/T/T2/ISDB-T) and IGS-924S (ATSC). | Up to 1024 SPTS in total (512 per DATA port) or selectable MPTS. UDP / RTP / RTSP; unicast / multicast. 2 ASI outputs. | FTA reception and embedded BISS descrambling; no CI/CAM slots. Web NMS. 19-inch 1U; single PSU standard, redundant PSU optional. | Request a quote |
|
BLANKOM IGS-924A DVB to IP gateway, 24 tuners, advanced IPTV model (Dynamic PMT, EPG/EIT) |
24 DVB-S/S2/S2X tuners. 2 ASI inputs. USB TS playback and recording. | Up to 128 SPTS in total (64 each on DATA1 and DATA2). No MPTS IP output. Up to 850 Mbps per DATA port. UDP / RTP / RTSP; unicast / multicast. | Model specialised for SPTS-based IPTV. Dynamic PMT support. Demultiplexes EIT data and inserts it into selected SPTS streams, supporting programme guides (EPG) in compatible receivers and middleware. AIT carriage. USB TS recording and playback. BISS Mode 1 / Mode E descrambling; no CI/CAM slots. | Request a quote |
ASI to IP gateways and decoders
| Image | Model | Inputs | Outputs | Features | Quote |
|---|---|---|---|---|---|
 |
BLANKOM IGA-4400 ASI to IP gateway and multiplexer (bidirectional) |
4 bidirectional ASI ports (direction defined manually as input or output). 768 IP inputs over UDP/RTP in total (256 each through GE1, GE2 and the DATA port). | 4 bidirectional ASI ports. 4 IP (MPTS) outputs over UDP/RTP through GE1, GE2 and the DATA port. | IP to ASI and ASI to IP converter (gateway). IP multiplexer. ASI multiplexer. | Request a quote |
 |
BLANKOM IGS-2000 / IGS-4000 / IGS-6000 ASI and IP decoder, ASI to IP and IP to ASI converter |
2 IP inputs. 2 bidirectional ASI ports, selectable as input or output. | 1 IP output. 2 HD/SD-SDI decoding outputs with 2 embedded stereo audio channels on each port. | Converts UDP IPTV streams and ASI streams into HD-SDI. | Request a quote |
IP to IP gateway and transcoder: IPTV over the internet
The bidirectional ASI to IP gateway IGA-4400 is also part of the manufacturer’s IP to IP gateway group; it is listed in the table above.
| Image | Model | Features | Quote |
|---|---|---|---|
 |
BLANKOM BTR-6000V IP to IP live video transcoder and multiplexer |
Multi-channel transcoding for IPTV. Optimises the stream content for live video distribution. Transcoding capacity of up to 32 SD channels, 16 HD channels or 1 4K UHD HEVC channel. Multiscreen transcoder with multiplexer. UDP, RTP, RTSP, SRT, RTMP(S), HTTP, HLS and FLV protocols. | Request a quote |
 |
BLANKOM BIG-1050X / BIG-1100X IP to IP gateway, stream protocol converter |
Broadcast-grade protocol converter for up to 50 (100) streams. Unicast to multicast and multicast to unicast conversion. UDP, RTP, RTSP, SRT, RTMP(S), HTTP, HLS and FLV. Use case: UDP → SRT → WAN (CDN) → SRT → UDP. | Request a quote |
Why BLANKOM?
- A graded series. Gateways with 8, 16 and 24 tuners, each in a single 19-inch unit.
- Encrypted services. CI slots on the IGS-700/84; BISS descrambling on all DVB to IP gateways.
- ASI and IP together. ASI inputs and outputs connect to existing broadcast infrastructure.
- Ready for the internet. Distribution over SRT, HLS and RTMP with the transcoder and protocol converter.
Why PROTEL?
- Distributor. BLANKOM products and technical support directly from PROTEL.
- Complete system. Headend, encoder, IPTV server, set-top box and cabling come from the same supplier.
- Selection support. We work out the model with you from transponder count, encryption and destination.
- Worldwide supply. Shipped from our warehouses in Germany and Turkey.
Frequently asked questions about IPTV headends
What is the difference between a DVB to IP gateway and a transcoder?
A gateway converts the service to IP without changing bit rate or format, which is sufficient for IPTV on a local network. A transcoder changes format, bit rate and encoding, which is needed for delivery over the internet where bandwidth is limited.
What is the difference between IGS-900 and IGS-900A, and between IGS-924 and IGS-924A?
The tuner count is the same (16 and 24 DVB-S/S2/S2X). The standard models offer selectable SPTS or MPTS output. The A models add Dynamic PMT and EPG/EIT demultiplexing but use a different output profile: up to 128 SPTS in total (64 per DATA port) and no MPTS IP output. Select by the required functions and output format, not by the A suffix alone. Details are on the product pages at irenis-blankom.com.
Which model decrypts encrypted services?
The IGS-700/84 has 2×2 CI slots for CI modules and embedded BISS / BISS-E decryption. The IGS-8008, IGS-900, IGS-900A, IGS-924 and IGS-924A have no CI/CAM slots; they offer BISS descrambling.
Which models support the SRT protocol?
According to the manufacturer’s published information the IGS-8008 (among its output protocols), the BTR-6000V and the BIG-1050X / BIG-1100X. The output protocols of the IGS-900, IGS-900A, IGS-924 and IGS-924A are UDP, RTP and RTSP.
I do not know the model code. How do I get a quotation?
Send the number of transponders and channels, whether any services are encrypted and the destination of the streams; we will suggest the model.
Request a quote
- If you know the model: model code, quantity and delivery location are enough.
- If you do not: send the number of satellites and transponders, the number of channels, any encrypted services and the destination of the streams (LAN, internet).
- If you have a specification or project drawing: send it and we will work out the matching models.
