IP Streamer & HEVC Encoder with SDI Input

IRENIS SDE-265

Data Sheet

User Manual

Ask for further info or quotation

HEVC and H.264 encoder & streamer with dual stream output

⟩⟩⟩ State-of-the-art HEVC (H.265) encoding, enabling to use 30% less bitrate against H.264 at the same content quality. Up to 1080p/60fps HD resolution. Dual IP output streams at the same time with different resolutions, e.g. one for internet, one for LAN. All IRENIS encoders offer perfect image quality and stable system operation at an affordable price.

  • HEVC (H.265) and H.264 encoder & IP streamer combined
  • HD-SDI input for encoding
  • HD and SD video encoding
  • HD Resolution 1080p, 1080i, 720p. (1080p@60 Hz is possible)
  • Dual stream encoding and output of the same input signal is possible (one stream in HEVC, another stream in H.264 with different parameters simultaneously is possible)
  • Analog audio input
  • HD-SDI output of the input signal
  • IP output: RTSP, RTMP, HTTP, UDP (unicast / multicast), FLV, ONVIF and HLS
  • On screen graphics and text insertion (Logo (as *.bmp file) and Text insertion feature on main stream & on 2nd stream)
  • Distribution of video camera, PC monitor, satellite receiver, DVD / Blu-ray player content over LAN, WAN or internet
  • Live stream broadcast
  • Video-over IP applications
  • IPTV/OTT applications
  • Video conferencing
  • Local IPTV on LAN applications, Corporate IPTV, Hotel IPTV
  • Digital signage
  • Stable and effective embedded HiLinux OS
  • YouTube Live Streaming, Ustream, Twitter, Facebook live broadcast platform compatible

IRENIS SDE-265 encoder enables the distribution of SD and HD tv/video content through IP networks in digital quality.

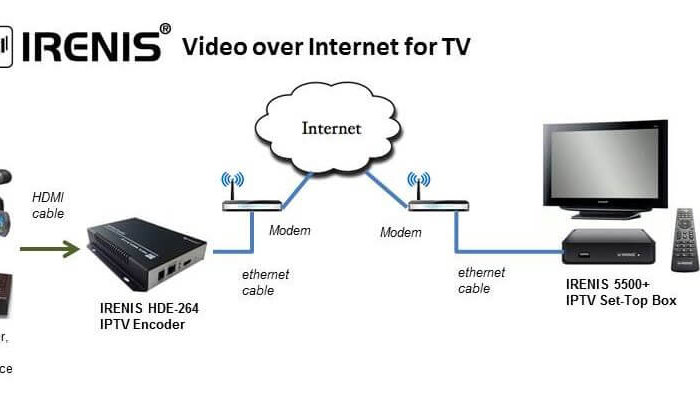

The live video can be watched on tv sets with IPTV Set-Top Boxes, on PC’s and tablets with VLC Player.

Features

IRENIS SDE-265 IPTV encoder is designed for TV signal distribution in excellent quality over LAN and INTERNET.

The HEVC (H.265) compression technology features low latency and low bit rates for IPTV/OTT systems. The high-efficient bandwidth use saves bandwidth cost through all its resolution range.

Distribution of SD and HD TV channels through the IPTV/OTT network using state-of-art IP technology from almost any kind of video input.

Excellent video and audio quality. High reliability. No regular service and maintenance need during operation.

Application

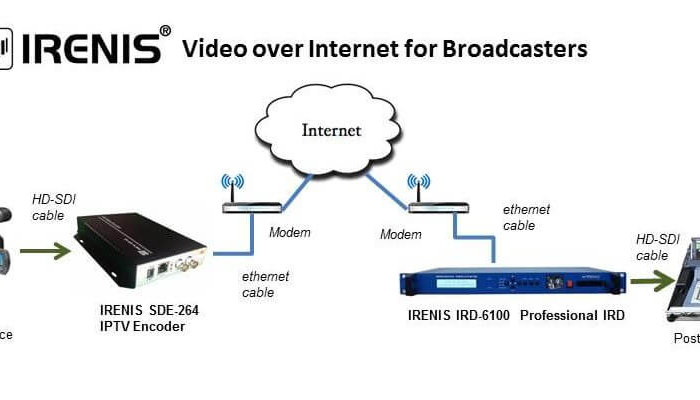

Streamer for OTT platform providers for feeding the CDN with live video.

Streamer for multicast IPTV distribution on LAN.

Encoder for Video-over-IP applications. Suitable for use on Ka-Sat live feeds.

Technical Specifications

Function HEVC (H.265) & H.264 Encoder and IP Streamer

INPUT

  • Connection HD-SDI  or SD-SDI (BNC) in and loopthrough out
  • Resolution 1080p, 1080i, 720p (HDMI) and below
  • Video encoder HEVC (H.265) or MPEG-4 AVC / H.264 high profile Level 4.0, selectable
  • Audio encoder AAC
  • Audio Bit-rate: Bit-rate: 32k/48k/96k/128k/160k/192k, Data-rate: 64 kbps-384 kbps

SYSTEM

  • Data interface RJ45, 100M Ethernet interface, Control over web browser
  • Protocol HTTP, RTSP, RTMP; unicast/multicast
  • Data Rate 0.8 Mbps – 12 Mbps
  • Rate control CBR/VBR
  • GOP Structure IBBP Adv
  • Pretreatment De-interlacing, Noise reduction, Sharpening

SYSTEM

  • Power supply 12V DC
  • Dimensions 170x130x30mm
  • Weight 0.5 kg
  • Consumption 6W
